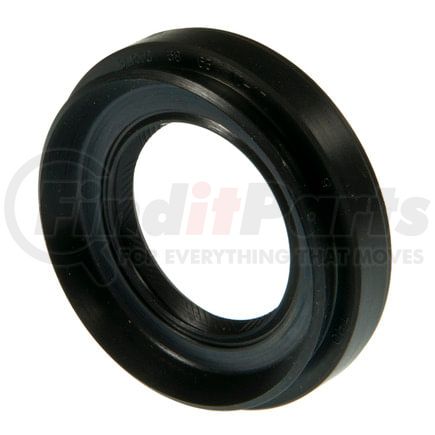

NATIONAL SEALS 710594 Part Description
Manufacturer
Product Description
Differential Pinion Seal
Application Summary
1999-2003 Lexus RX300 (Rear Outer) (Qualifier: with 6.7 (in) Ring Gear, with Toyota Axle); 2004-2006 Lexus RX330 (Rear Outer) (Qualifier: with 6.7 (in) Ring Gear, with Toyota Axle); 2007-2009 Lexus RX350 (Rear Outer) (Qualifier: with 6.7 (in) Ring Gear, with Toyota Axle); 2001-2005 Toyota Highlander (Rear Outer) (Qualifier: with 6.7 (in) Ring Gear, with Toyota Axle); 1988-1991 Toyota Camry (Front Outer) (Drive: 4WD / Qualifier: with 6.7 (in) Ring Gear, with Toyota Axle); 1988-1993 Toyota Celica (Front Outer) (Drive: AWD / Qualifier: with 6.7 (in) Ring Gear, with Toyota Axle); 1991-1997 Toyota Previa (Front Outer) (Drive: AWD / Qualifier: with 6.7 (in) Ring Gear, with Toyota Axle); 2004-2010 Toyota Sienna (Rear Outer) (Qualifier: with 6.7 (in) Ring Gear, with Toyota Axle); 1996-2005 Toyota RAV4 (Rear Outer) (Qualifier: with 6.7 (in) Ring Gear, with Toyota Axle); 1988 Toyota Van Wagon (Front Outer) (Qualifier: with 6.7 (in) Ring Gear, with Toyota Axle); 1987-1989 Toyota Van (Front Outer) (Drive: 4WD / Qualifier: with 6.7 (in) Ring Gear, with Toyota Axle)
Features & Benefits
- Design type: spring loaded; multi-lip
- Temperature range: -20°F to 300°F / -29°C to 49°C
- Temperature range: -20degF to 300degF / -29degC to 49degC
- Resistance to EP lubricants
- Low swell in hydrocarbon fluids
- Delivers quality and reliable performance for every type of repair
NATIONAL SEALS 710594 Specifications
Product Attributes
| Inside Diameter | 1.496 IN |
| Inside Diameter | 38.000 MM |
| Outside Diameter | 2.567 IN |
| Outside Diameter | 65.210 MM |
| Width | 0.394 in |
| Width | 10.000 MM |
| Material | Polyacrylate |
| Helix Type | Bi-Directional Lip Design |
| Part Description | Oil Seal |
| Series | 710500 |
| Thickness | 0.394 IN |
| Thickness | 10.000 MM |
| Type | 40 |
| Unit of Dimension | Metric |
| Housing Bore | 2.559 IN |
| Housing Bore | 65.000 MM |
| Overall Width with Side Lip | 17.000 MM |
| Overall Width with Side Lip | 0.669 in |
| Shaft Diameter | 1.496 IN |
| Shaft Diameter | 38.000 MM |
| Shaft Diameter | 38.000 MM |
| Grade Type | Premium |
Additional Information
| Country of Origin (Primary) | JP |
| Harmonized Tariff Code (Schedule B) | 4016931020 |
| Harmonized Tariff Code (HTS) | 4016931020 |
| Canadian Harmonizing Tariff Code | 4016930000 |
| UPC | 00019826058768 |
NATIONAL SEALS 710594 Part Interchanges
| Brand | Part Number |
|---|---|
| Toyota | 90311-38019, 90311-38027, 90311-38048, 90311-38052, 90311-38068 |
| SKF | 14758, 14934 |
| Chicago Rawhide | 14758, 14934 |
| Beck/Arnley | 052-4114 |
| Timken | 710594 |
NATIONAL SEALS 710594 Fits Vehicles
- Lexus RX350 (2007-2009)
- Lexus RX330 (2004-2006)
- Toyota Sienna (2004-2010)
- Toyota Van Wagon (1988)
- Toyota Van (1987-1989)
- Toyota RAV4 (1996-2005)
- Toyota Previa (1991-1997)
- Toyota Celica (1988-1993)
- Toyota Camry (1988-1991)
- Toyota Highlander (2001-2005)
- Lexus RX300 (1999-2003)
