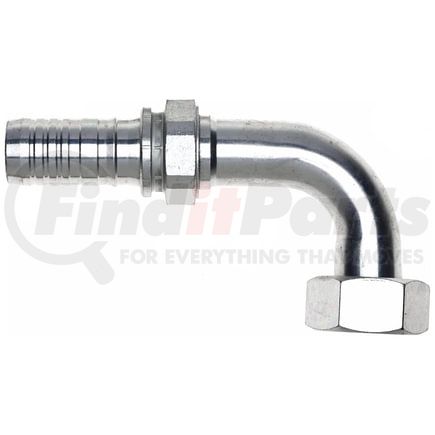

Gates G22240-2424 - Female Flat-Face O-Ring Swivel - 90 Bent Tube (GlobalSpiral Plus)
$25999
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
GATES part description
Product Description
Female Flat-Face O-Ring Swivel - 90 Bent Tube (GlobalSpiral Plus)
Features & Benefits
- "Bite-the-wire" crimp for improved coupling retention
- “Bite-the-wire” crimp for improved coupling retention
- Tested to an industry-leading 1,000,000 impulse cycles
- +250 Deg. F temperature capability for longer assembly life
- Environmentally-friendly TuffCoat plating for 347 percent better corrosion resistance than the SAE Standard
Product Attributes
| Coupling Description | GlobalSpiral Plus Female Flat-Face O-Ring Swivel - 90 Bent Tube |
| Industrial Description | 24GSP-24FFORX90M |
| Thread Size | 2-12 |
| Inside Diameter | 1.5 IN |
| Hydraulic Hose Recommendation | Gates Extremely High Pressure Hydraulic Hose (-24 & -32) |
| Nut Hex Size | 2.25 MM |
| Drop Length | 3.41 IN |
| Cut-Off Length | 4.95 IN |
| Length | 7.61 IN |
| Inside Diameter | 38.1 MM |
| Drop Length | 86.6 MM |
| Cut-Off Length | 125.8 MM |
| Length | 193.3 MM |
Additional Information
| Harmonized Tariff Code (Schedule B) | 7326908688 |
| Country of Origin (Primary) | US |
| UPC | 00770075424574 |
| VMRS Code | 059032012 |
| UNSPSC | 31163000 |
