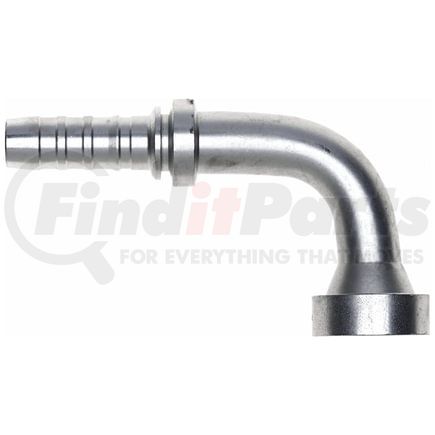

Gates G20416-1620 - Caterpillar Style O-Ring Flange - 90 Bent Tube (GlobalSpiral)
$17499
5 day lead time
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
GATES part description
Product Description
Caterpillar Style O-Ring Flange - 90 Bent Tube (GlobalSpiral)
Features & Benefits
- "Bite-the-wire" crimp for improved coupling retention
- “Bite-the-wire” crimp for improved coupling retention
- Tested to an industry-leading 1,000,000 impulse cycles
- +250degF temperature capability for longer assembly life
- +250°F temperature capability for longer assembly life
- Environmentally-friendly TuffCoat plating for 347 percent better corrosion resistance than the SAE Standard
Product Attributes
| Cut-Off Length | 2.92 IN |
| Length | 5.15 IN |
| Coupling Description | GlobalSpiral Caterpillar Style O-Ring Flange - 90 Bent Tube |
| Industrial Description | 16GS-20FLC90-132 |
| Inside Diameter | 1 IN |
| Hydraulic Hose Recommendation | All Gates MegaSys Four and Six-Spiral Wire Hydraulic Hose Up to 8,000 psi |
| Flange Thickness | .56 in |
| Flange Diameter | 2.13 IN |
| Drop Length | 5.19 IN |
| Inside Diameter | 25.4 MM |
| Flange Thickness | 14.2 MM |
| Flange Diameter | 54.1 MM |
| Drop Length | 131.8 MM |
| Cut-Off Length | 74.2 MM |
| Length | 130.8 MM |
Additional Information
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (Schedule B) | 7326908688 |
| UPC | 00770075442080 |
| VMRS Code | 059032012 |
| UNSPSC | 31163000 |
Part Interchanges
