GATES G20175-1010 Part Description
Manufacturer
Product Description

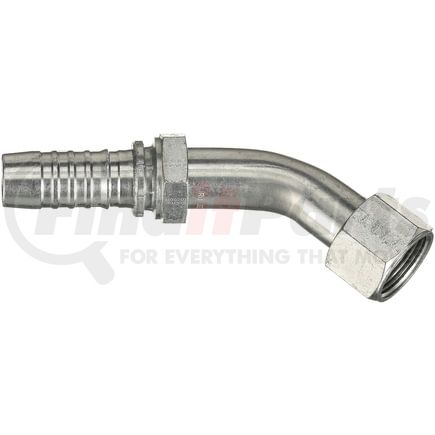

Female JIC 37 Flare Swivel - 45 Bent Tube (GlobalSpiral)
Features & Benefits
- "Bite-the-wire" crimp for improved coupling retention
- “Bite-the-wire” crimp for improved coupling retention
- Tested to an industry-leading 1,000,000 impulse cycles
- +250 Deg. F temperature capability for longer assembly life
- Environmentally-friendly TuffCoat plating for 347 percent better corrosion resistance than the SAE Standard
GATES G20175-1010 Specifications
Product Attributes
| Coupling Description | GlobalSpiral Female JIC 37 Flare Swivel - 45 Bent Tube |
| Industrial Description | 10GS-10FJXMM45-018 |
| Thread Size | 7/8-14 |
| Inside Diameter | .625 IN |
| Hydraulic Hose Recommendation | All Gates MegaSys Four and Six-Spiral Wire Hydraulic Hose Up to 8,000 psi |
| Nut Hex Size | 1.0625 IN |
| Drop Length | .71 IN |
| Cut-Off Length | 2.48 IN |
| Length | 4.45 IN |
| Inside Diameter | 15.9 MM |
| Drop Length | 18 MM |
| Cut-Off Length | 63 MM |
| Length | 113 MM |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8412909015 |
| Country of Origin (Primary) | US |
| Stock Status | S |
| UPC | 00072053449761 |
| VMRS Code | 059032012 |
| UNSPSC | 31163000 |
GATES G20175-1010 Cross References
| Brand | Part Number |
|---|---|
| Aeroquip | 4SA10FJA10 |
| Dayco | 101183 |
| Goodyear | 29420-1010 |
| N/A | 04030750 |
| NAPA | G20175-1010 |
| Parker | 13777-10-10 |
