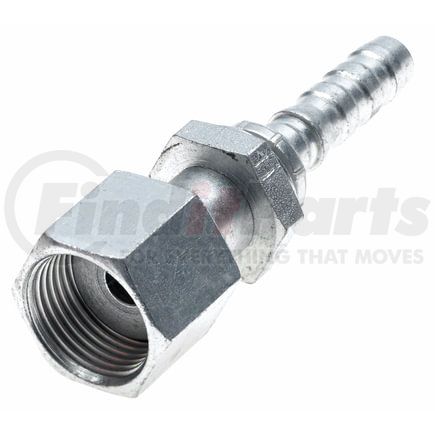

Gates G17230-0404 - Female Flat-Face O-Ring Swivel Metric Hex (Stainless Steel Braid)
$9899
5 day lead time
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
GATES part description
Product Description
Female Flat-Face O-Ring Swivel Metric Hex (Stainless Steel Braid)
Features & Benefits
- Stainless steel couplings last longer than standard couplings so you can avoid replacing an entire assembly before the hose itself needs replacement
- Fortified with 316 grade stainless steel, these longer maintenance intervals mean more value for your dollar.
- Gates Stainless Steel stems are available in the B series for braided hose or the S series for spiral-wire
Product Attributes
| Coupling Description | Stainless Steel Braid Female Flat-Face O-Ring Swivel Metric Hex |
| Industrial Description | 4B-4FFORX-SS |
| Thread Size | 9/16-18 |
| Inside Diameter | .25 IN |
| Hydraulic Hose Recommendation | Gates EFG3K, G1, G1H, G2, M2T, M3K, M4K, M4KL, M5K, PowerClean |
| Stem Hex Size | .55 IN |
| Nut Hex Size | .67 IN |
| Cut-Off Length | 1.11 IN |
| Length | 2.14 IN |
| Inside Diameter | 6.4 MM |
| Stem Hex Size | 14 MM |
| Nut Hex Size | 17 MM |
| Cut-Off Length | 28.4 MM |
| Length | 54.5 MM |
Additional Information
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (Schedule B) | 7326908688 |
| UPC | 00770075433729 |
| VMRS Code | 059032012 |
| UNSPSC | 31163000 |
Part Interchanges
