HALDEX part description

Product Description

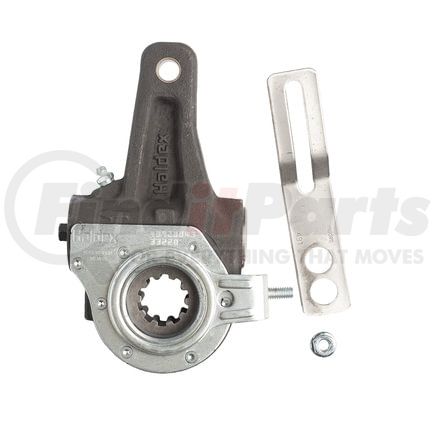

Auto Brake Adjuster Kit Truck/Trailer SABA Arm Length 5-1/2" Offset 0

Application Summary

Steer Axle Applications, Standard

Features & Benefits

  • Covers more drum brake applications than competing adjusters in the market
  • With innovative self-setting flexible design that offers a free selection of control arm position and error-free installation
  • Made highly durable and with predictable performance
  • Rolled wormshaft provides added resistance against fatigue
  • Centralized clutch offers improved protection from moisture, dirt, and road salt
  • Helps prevent uneven tire and brake wear for added savings on maintenance and operating expenses
  • High alloy steel internal gears provide increased strength and wear resistance
  • Heat-treated housing minimizes internal wear and extends service life
  • Offers ease of installation and improved performance

Haldex S-ABA Service Kit

Improve your ride’s stopping performance with the Haldex S-ABA service kit. This kit already includes the air brake automatic slack adjuster and other components you need to service your truck’s air braking system.

Product Attributes

Anchor Bracket Style Strap
Arm Hole Diameter 1/2 in.
Arm Length 5-1/2 in.
Body Angle 0 DD
Freight Class 70
Grease Fitting Location 242 DD
Grease Fitting Type Straight
Location Rear
Pin Diameter 1/2 in.
Recommended Bracket Number 42710543
Recommended Use Steer Axle Applications
Spline Diameter 1-1/4 in.
Spline Quantity 10

Additional Information

Country of Origin (Primary) US
Harmonized Tariff Code (Schedule B) 8708305090
Harmonized Tariff Code (HTS) 8708305090
Remanufactured Part N
Warranty Distance 100000
Warranty Distance UOM MI
Warranty Special 72 MO, 1 MIL MI=Haldex ABA/SABA (409 Part Number Prefix)(1), 36 MO, Unlimited MI=Haldex ABA (NL/429 Part Number Prefix)(1). 24 MO, 200K MI=Haldex ABA(8). 24 MO, 100K MI=Haldex ABA/S-ABA(3) & Non-Haldex ABA. 12 MO, 100K MI=Haldex ABA(9). See L20221W.pdf
Warranty Time 12
Warranty Time UOM MO
UPC 00767653321714
VMRS Code 013002035

Part Interchanges

Haldex® is a Sweden-based manufacturer specializing in brake and air suspension systems for heavy duty vehicles. Its product line consists of brake components for wheel ends, including disc brakes, brake adjusters, and actuators. It also offers air control products such as compressed air dryers, valves, ABS, and EBS. All these Haldex products are designed with safety and efficient operation in mind, cutting down on potential hazards and maintenance costs in the long run. Today, Haldex runs manufacturing and R&D facilities in 19 countries across four continents. It is dedicated to producing high-quality brake and suspension parts for its customers all around the world as well as developing new technologies for the future.
