HALDEX part description

Product Description

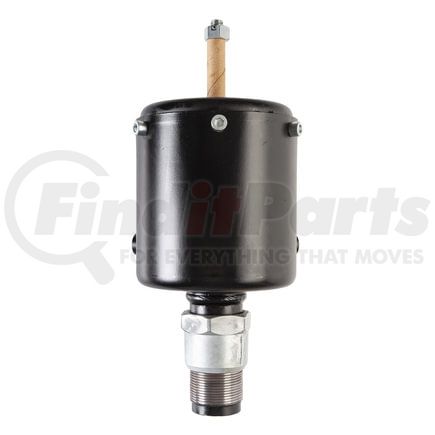

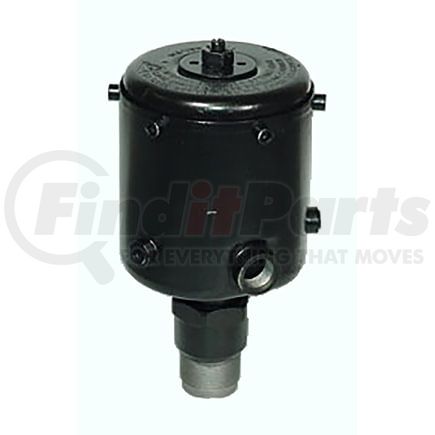

MAXIBRAKE® H-Series Hydraulic Spring-Set Parking Brake

Application Summary

MAXIBRAKE® H-Series Hydraulic Spring-Set Parking Brake

Features & Benefits

  • Equipped with all-steel housing for durability and maximum protection against corrosion
  • Steel piston and nylon bearings help diffuse lateral and twisting motion
  • Epoxy-coated steel alloy springs for remarkable rust and corrosion protection
  • Optional spring force and deeper spring cavities deliver consistent output and longer lifespan
  • Readily available for use since parking brake release mechanisms are housed inside the unit
  • Has a stamped steel piston with 360° heavy-duty plastic bushing and o-ring seal
  • Includes a fluid inlet and a chrome-plated piston rod

Haldex MAXIBRAKE® H-Series Air Brake Spring Brake

Manufactured in ISO- and QS-certified facilities and using high-quality materials and advanced production processes, the Haldex MAXIBRAKE® H-Series air brake spring brake ensures long-term durability and reliable performance. This hydraulic spring brake meets the industry's strict quality standards and delivers outstanding value mile after mile.

Product Attributes

Freight Class 70
Maximum Pressure 125 PSI
Notes Complete Unit
Series Maxibrake® H-Series
Stroke Length 2 in.

Additional Information

Country of Origin (Primary) MX
Harmonized Tariff Code (Schedule B) 8412210075
Harmonized Tariff Code (HTS) 8412210075
Remanufactured Part N
Warranty Distance 100000
Warranty Distance UOM MI
Warranty Special See Haldex Aftermarket Product warranty Policy (L20221W).pdf
Warranty Time 12
Warranty Time UOM MO
UPC 00767653016306
VMRS Code 013004009

Part Interchanges

Haldex® is a Sweden-based manufacturer specializing in brake and air suspension systems for heavy duty vehicles. Its product line consists of brake components for wheel ends, including disc brakes, brake adjusters, and actuators. It also offers air control products such as compressed air dryers, valves, ABS, and EBS. All these Haldex products are designed with safety and efficient operation in mind, cutting down on potential hazards and maintenance costs in the long run. Today, Haldex runs manufacturing and R&D facilities in 19 countries across four continents. It is dedicated to producing high-quality brake and suspension parts for its customers all around the world as well as developing new technologies for the future.

HALDEX MA15500 Cross Reference

We have 4 alternatives for the MA15500 by HALDEX:
