HALDEX part description

Product Description

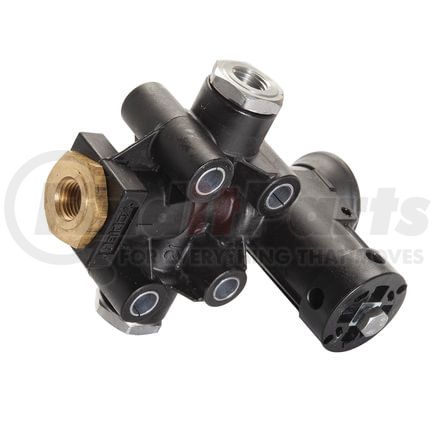

EGP Low Flow Leveling Valve

Application Summary

Variations in the height of the chassis resulting from different load conditions are equalized by inflating or deflating the air suspension bellows in proportion to the respective loads carried by the vehicle.

Features & Benefits

  • A high-quality Immediate Response height control valve that helps maintain vehicle height on an air suspended chassis
  • Made of durable (EGP) Engineering Grade Plastic to ensure it lasts longer than the competition
  • Does not include a dump and linkage kit
  • One valve can be used for right and left installations, while another valve can control two suspension bellows
  • A low flow valve that’s made suitable for cab applications

Haldex EGP Leveling Valve

Save on fuel and maintenance cost and reduce fleet downtime by outfitting your trucks with Haldex EGP leveling valve. This component adds air to or releases air from the suspension to sustain suspension ride height.

Product Attributes

Air Port Thread Diameter 1/4 in. NPT
Dump Valve Included No
Exhaust Port Diameter 1/4 in. NPT
Freight Class 70
Linkage Arm Adjustment Horizontal / Vertical
Linkage Arm Length 8.5 in. / 9.5 in.
Series Immediate Response (IR)
Supply Port Diameter 1/4 in. NPT

Additional Information

Country of Origin (Primary) DE
Harmonized Tariff Code (Schedule B) 8481200070
Harmonized Tariff Code (HTS) 8481200070
Remanufactured Part N
Warranty Distance 100000
Warranty Distance UOM MI
Warranty Special 24 MO, 200,000 MI=Air Compressors EL850(4), EL1300(5), EL1600(5), Tu-Flo 501/550(4), Tu-Flo 700/750(4), 12 MO, 100,000 MI=All Other REMAN Products Not Listed(13). See L20221W.pdf for warranty details
Warranty Time 12
Warranty Time UOM MO
UPC 00767653094465
VMRS Code 016008023

Part Interchanges

Haldex® is a Sweden-based manufacturer specializing in brake and air suspension systems for heavy duty vehicles. Its product line consists of brake components for wheel ends, including disc brakes, brake adjusters, and actuators. It also offers air control products such as compressed air dryers, valves, ABS, and EBS. All these Haldex products are designed with safety and efficient operation in mind, cutting down on potential hazards and maintenance costs in the long run. Today, Haldex runs manufacturing and R&D facilities in 19 countries across four continents. It is dedicated to producing high-quality brake and suspension parts for its customers all around the world as well as developing new technologies for the future.

HALDEX KN27201 Cross Reference

We have 3 alternatives for the KN27201 by HALDEX:
