HALDEX part description

Product Description

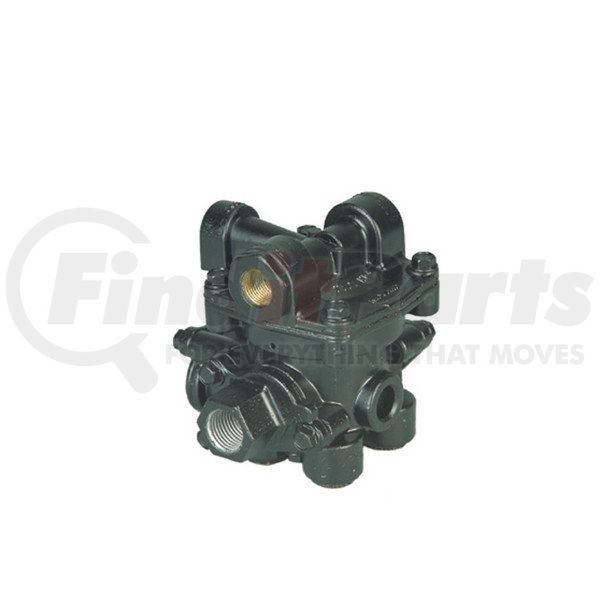

RT4 Multi-Function

Application Summary

Used on trailers to control both parking and emergency brake functions.

Features & Benefits

  • Effectively controls emergency and parking brake functions as well as reservoir charging
  • Emergency (parking) brakes are applied upon loss of trailer supply (emergency) line pressure
  • May be interchanged with units from competing brands
  • Designed to meet all FMVSS-121 trailer requirements
  • All Haldex remanufactured valves are designed for trouble-free and cost-effective repair and maintenance

Haldex Like-Nu Trailer Brake Control Valve

When it’s time to replace the valve on your trailer, be sure to trust only the Haldex Like-Nu trailer brake control valve. This RT4 multi-function trailer valve goes through stringent remanufacturing process to ensure it fits and works just like the original component.

Product Attributes

Closing Pressure 70 PS
Control Port Diameter 3/8 in.
Freight Class 70
Reservoir Port Diameter 1 @ 1/2 in., 1 @ 3/8 in.
Supply Port Diameter 1 @ Plugged, 1 @ 3/8 in.

Additional Information

Country of Origin (Primary) MX
Harmonized Tariff Code (Schedule B) 8481200070
Harmonized Tariff Code (HTS) 8481200070
Remanufactured Part N
Warranty Distance 100000
Warranty Distance UOM MI
Warranty Special 36 MO, 350,000 MI=Haldex Air Brake Valves(1), Automatic Drain Valves (410-10XXX Series)(1). 12 MO, 100,000 MI= Automatic Drain Valves (N20878/ N20879 Series), Height Control Valve, Scale-O-Matic and AC Boxes. See L20221W.pdf for warranty details
Warranty Time 12
Warranty Time UOM MO
UPC 00767653010533
VMRS Code 013010009

Part Interchanges

Haldex® is a Sweden-based manufacturer specializing in brake and air suspension systems for heavy duty vehicles. Its product line consists of brake components for wheel ends, including disc brakes, brake adjusters, and actuators. It also offers air control products such as compressed air dryers, valves, ABS, and EBS. All these Haldex products are designed with safety and efficient operation in mind, cutting down on potential hazards and maintenance costs in the long run. Today, Haldex runs manufacturing and R&D facilities in 19 countries across four continents. It is dedicated to producing high-quality brake and suspension parts for its customers all around the world as well as developing new technologies for the future.

HALDEX KN26010 Cross Reference

We have 5 alternatives for the KN26010 by HALDEX:
