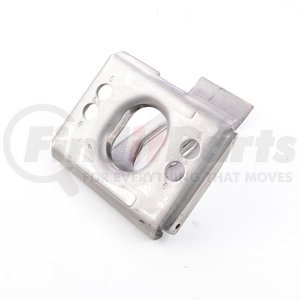

EUCLID E2518A Air Brake Chamber Bracket

Manufacturer

EUCLID

Product Description

Air Brake Chamber Bracket

Features & Benefits

• Chamber bracket body fixes the actuator at the brake-side mounting point
• Pushrod alignment depends on the bracket angle and hole condition
• Steel mounting face takes repeated load from brake apply cycles
• Bracket service helps separate chamber problems from support structure issues
• Brake linkage checks become clearer once the actuator base sits squarely

Euclid Air Brake Chamber Bracket

The Euclid Air Brake Chamber Bracket creates the fixed mounting point that holds the brake chamber in line with the pushrod and slack adjuster path. Its steel bracket body sets the actuator angle, hole position, and chamber base so the brake force starts from a square mounting surface. Brake chambers can only work correctly when the bracket holds the actuator where the linkage expects it. During chamber replacement, camshaft service, or brake hardware work, distorted metal around the actuator base can affect stroke checks before the chamber itself is at fault. Through Euclid E2518A, the brake assembly gets a clean chamber mounting structure before linkage movement is judged.
