EUCLID part description

Application With 5 in. Round Axles
Grade 5
Includes U-Bolt, Hi-Nuts, Washers
Length 14.00 in.
Notes U-Bolt Assembly, Round Bend, 0.875 in.-14 Thd. x 5 in. Wide x 14 in. Long
Nut E-3002A
Suspension Model 0
Thread Diameter/Threads Per Inch 7/8/2014
Thread Length 6.00 in.
Type Round Bend
Type Number 1
VMRS Code 016-005-007
Washer E-2546
Thread 7/8”–14”
A Dimension 14"
B Dimension 5"
C Dimension 6"

Product Description

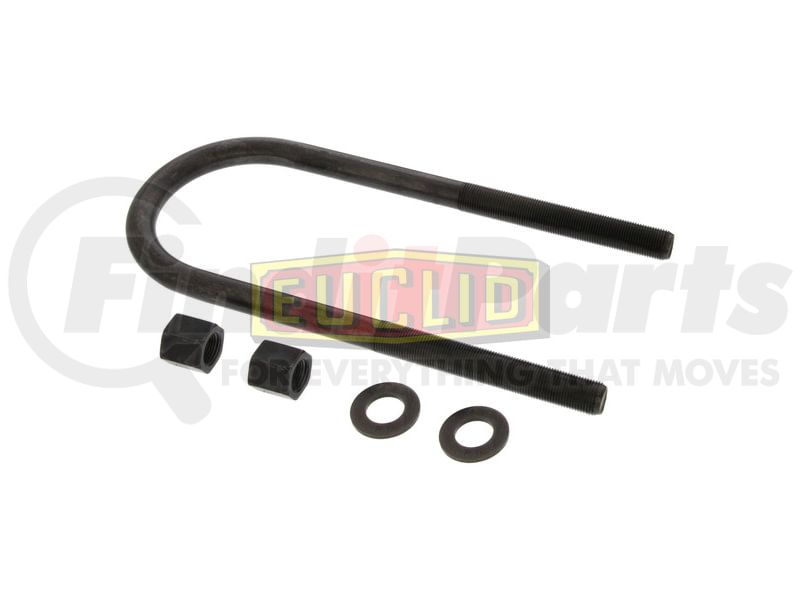

U-BOLT ASSEMBLY

Product Attributes

Application With 5 in. Round Axles
Brand Euclid
Grade 5
Includes U-Bolt, Hi-Nuts, Washers
Length 14.00 in.
Notes U-Bolt Assembly, Round Bend, 0.875 in.-14 Thd. x 5 in. Wide x 14 in. Long
Nut E-3002A
Pallet Quantity 112
Suspension Model 0
Thread Length 6.00 in.
Thread Size 7/8 in.-14
Type Round Bend
Type Number 01
Washer E-2546
Weight 5.65
Width 5.00 in.

Euclid® is a world leader in the production of precision-engineered replacement parts for buses, trailers, as well as light-, medium- and heavy-duty trucks. This brand takes great pride in its products that meet and even exceed O.E.M. quality standards. Officially a part of Meritor since January 1999, Euclid remains the same despite all the changes the company has been through. When customers receive Euclid products, they know they are getting far more than ordinary replacement parts. Instead, they are getting the best replacement parts made today from a company they can trust. Euclid is a company that's continuously improving with technology to do a job the right way because it is the only way it knows how.
