Dana 4-4-7231-1M - DRIVE SHAFT END YOKE
$35399
MSRP: $440.25
Save: $86.26
In stock
limited availability at this price!
. Learn more
DANA part description
Specifications
| Brand | Spicer |
| Series | 1550 |
| Spline Count | 46 |
| Yoke Style | BS |

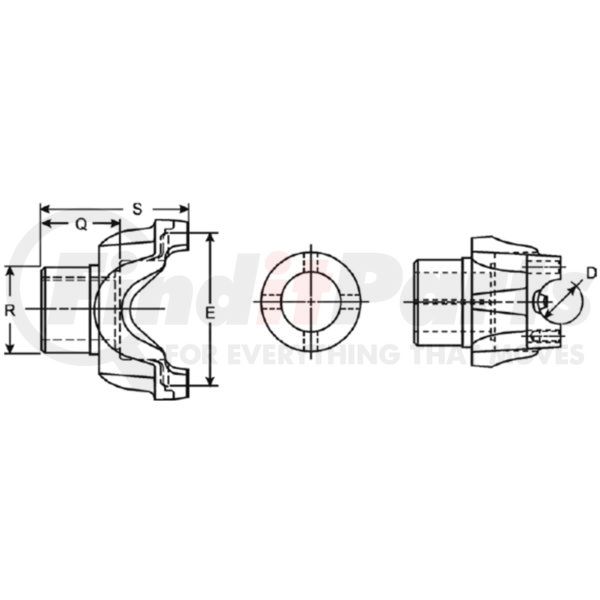

| Hub Diameter R | 3.000 |
| C/L To End Hub S | 6.193 |
| Type | Splined Hole |
| Outside Yoke Dimension (In) E | 4.964 |
| Yoke Bearing Dimension (In) D | 1.375 |
| Major Diameter | 2.372 |
| Involute Spline | I |
| Length Thru Hole Q | 3.734 |
| VMRS | 024001003 |
| C-Bore Depth | 0.790 |
| Material | Steel |
| Joint Angle #1 | 22.5 |
| C-Bore Diameter | 2.25 |
| Package Type | EACH |
| Package Qty | 1 |
| Weight | 6.92 LB |
| Country of Origin | Mexico |
Features & Benefits
- Uses high-grade Dana approved materials to ensure optimal quality.
- Dana designed, tested and engineered.
- Genuine OE quality. Tested and proven.
Product Attributes
| Series | 1550 |
| Material | Steel |
| Spline Count | 46 |
| Type | Splined Hole |
| Hub Diameter R | 3.000 IN |
| Involute Spline | I |
| Length Thru Hole Q | 3.734 IN |
| Outside Yoke Dimension (In) E | 4.964 IN |
| Yoke Bearing Dimension (In) D | 1.375 IN |
| Yoke Style | BS |
| Major Diameter | 2.372 IN |
| C/L To End Hub S | 6.193 IN |
| C-Bore Depth | 0.790 IN |
| C-Bore Diameter | 2.25 IN |
| Joint Angle #1 | 22.5 |
Additional Information
| Country of Origin (Primary) | MX |
| Harmonized Tariff Code (Schedule B) | 8708990000 |
| Harmonized Tariff Code (HTS) | 8708990000 |
| UPC | 00023913284954 |
| VMRS Code | 024001003 |
Part Interchanges
Dana Holding Corporation® is an internationally known company specializing in drivetrain and e-Propulsion systems. It conceptualizes, manufactures, and supplies energy-management and power- and conveyance solutions for the present-day and future vehicles and trucks. With its over 115 years of industry experience and innovation, and despite several turbulences the automotive and trucking industry has been through, Dana has managed to take the lead in revolutionary technological inventions. Dana Holding Corporation comprises different world-renowned brands catering to various market segments. These include SPICER Drivetrain Systems, VICTOR REINZ Sealing Products, LONG Thermal Products, BREVINI Motion Systems, GRAZIANO High-Performance Transmissions, FAIRFIELD Custom Gears and Drives, and a lot more.
