(888) 312-8812 Login SignupMERITOR M85920 Suspension Shock Absorber, Standard, 2.38 in. Body Diameter, 1.57 in. Shock Absorber Bore Size
Tap to view 1 more
MSRP: $119.05
$7949
Save $39.56
Limited availability at this price!
In Stock
Get it by Wednesday, Aug 12

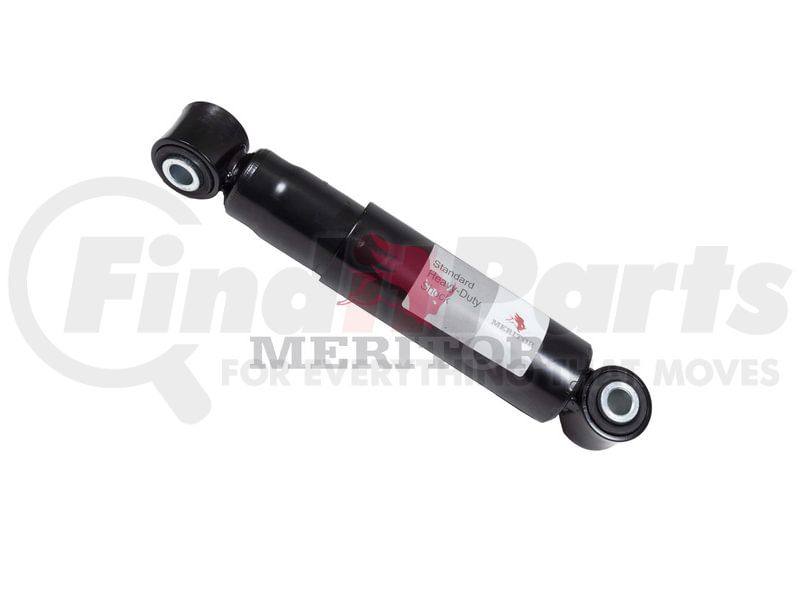

MERITOR M85920 Part Description
Manufacturer
Product Description
Shock Absorber
Meritor Suspension Shock Absorber
The Meritor Suspension Shock Absorber is a standard damping component for commercial suspension service. It works through compression and extension as the axle reacts to bumps, braking movement, and load changes across the route. This product is used when the spring hardware remains in service but the vehicle needs renewed ride control from the shock position. Under the frame, Meritor M85920 adds a fresh damping point for suspension movement without changing the surrounding mounts.
| Body Diameter (in.) | 2.38 in. |
| Body Diameter (mm) | 60.5 mm |
| Bore (in.) | 1.63 in. |
| Bore (mm) | 41 mm |
| Collapsed Length (in.) | 13.51 in. |
| Collapsed Length (mm) | 343.2 mm |
| Dust Shield Diameter (in.) | 2.75 in. |
| Dust Shield Diameter (mm) | 69.9 mm |
| Extended Length (in.) | 21.19 in. |
| Extended Length (mm) | 538.3 mm |
| Family Code | 41FCMD |
| Hydraulic Stop | Yes |
| Stroke | 195.1 mm |
| Stroke Inch | 7.68 in. |
| Type | Standard |
| VMRS Code | 016-008-003 |
Meritor Shock Absorber
Meritor shock absorber is designed for exceptional day-in and day-out performance for trucks, trailers, and other types of heavy duty commercial vehicles. This shock provides better ride comfort, operational control, and cargo protection than what the competition has to offer.
Features & Benefits
- Advanced gas cell system reduces oil cavitation from heavy use, maximizing damping efficiency and extending shock life
- Hardened piston rod with polished chrome coating for superior corrosion resistance
- Made of premium materials to ensure reliable performance even under extreme conditions
- Controls rebound after road impact to reduce extra suspension movement
- Mounting eyes connect into the existing suspension shock locations
- Damping action steadies the chassis after bumps and load shifts
- Ride service addresses motion control without replacing spring hardware
MERITOR M85920 Specifications
Product Attributes
| Body Diameter (in.) | 2.38 in. |
| Body Diameter (mm) | 60.5 mm |
| Bore (in.) | 1.57 in. |
| Bore (MM) | 40 mm |
| Brand | Meritor |
| Collapsed Length (in.) | 13.78 in. |
| Collapsed Length (mm) | 350 mm |
| Dust Shield Diameter (in.) | 2.75 in. |
| Dust Shield Diameter (mm) | 70 mm |
| Extended Length (in.) | 21.10 in. |
| Extended Length (mm) | 536 mm |
| Family Code | 41FCMD |
| Hydraulic Stop | Yes |
| Pallet Quantity | 198 |
| Stroke | 186 mm |
| Stroke Inch | 7.32 in. |
| Type | Standard |
| Weight | 9.15 |
| Body Diameter | 2.38 in. |
| Compressed Length | 13.78 in. |
| Dust Shield Diameter | 2.75 in. |
| Extended Length | 21.10 in. |
| Shock Absorber Bore Size | 1.57 in. |
| Shock Stroke | 186 mm |
| Type | Standard |
MERITOR M85920 Cross References
| Brand | Part Number |
|---|---|
| TDAM85920, 315597, 8235M85920 | |
| AUTOMANN | A85920 |
| FREIGHTLINER | 10-12388-000, 10-12390-000, 659060, 671945 |
| Freightliner | 1012390000, 1012388000 |
| GABRIEL | 85920, 89503 |
| MONROE | 66425, 66406, 65148 |
| Monroe Shocks & Struts | 66406 |
| STERLING | 10-12388-000, 10-12390-000 |
| STERLING TRUCK | 10-12390-000, 10-12388-000 |
MERITOR M85920 Customer Reviews
No reviews yet
Be the first to review this product!
MERITOR M85920 Manufacturer Information
Meritor®, whose roots could be traced back to 1909, is backed by over 100 years of industry experience plus a massive portfolio of products for various industries. In 1998, it made several acquisitions, including Volvo Trucks' heavy vehicle manufacturing operation in Sweden, Euclid Industries, and Lucas Varity's Heavy Vehicle Braking Systems division. Such investments solidify Meritor's position as the leading global supplier of brakes, axles, drivelines, transmissions, suspensions, tire inflations systems, and a whole lot of parts, hardware, and accessories for the automotive, truck, trailer, rail cars, bus and coach, and many other applications. Its "Run with the Bull" global brand identity further strengthens its commitment to provide the industry with durable products, unparalleled service and support, and continuous innovation.
