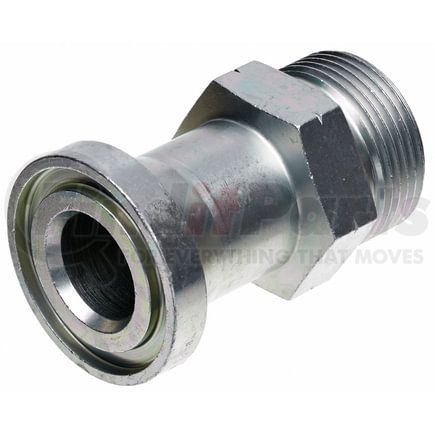

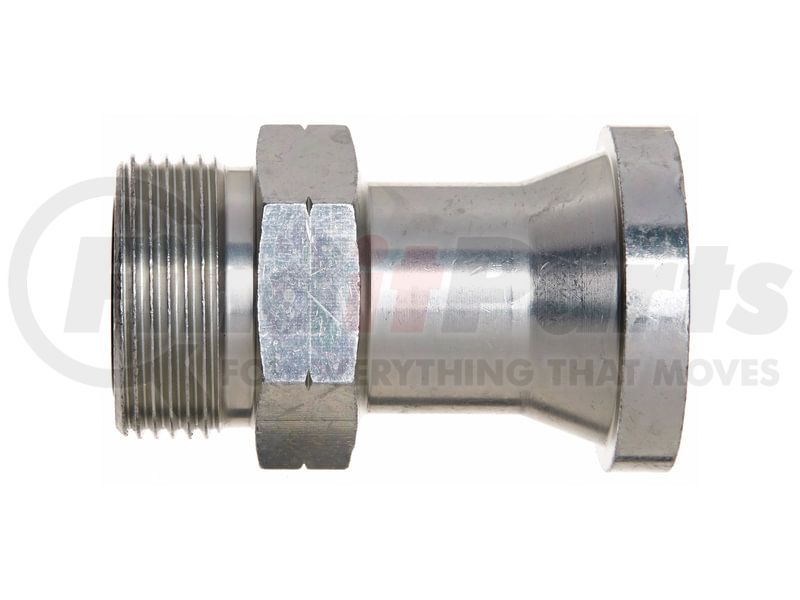

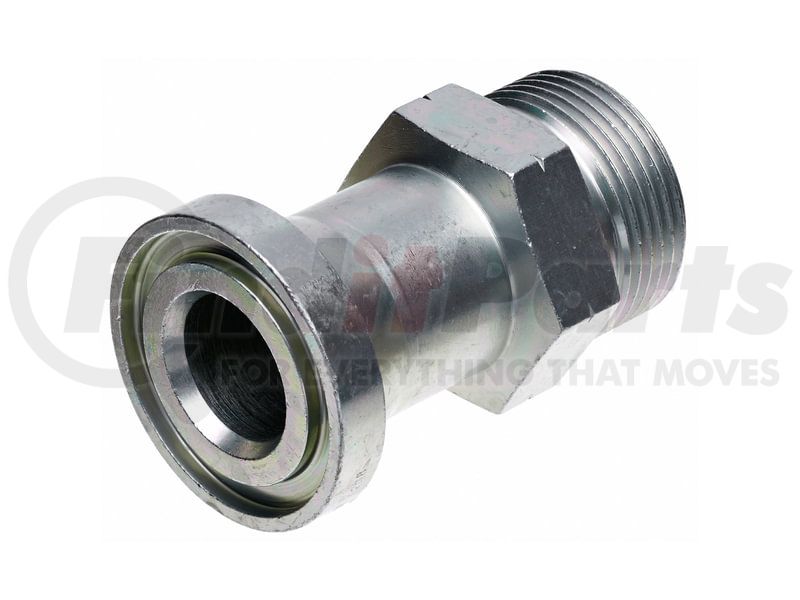

Gates G60915-1616 - Code 61 O-Ring Flange to Male Flat-Face O-Ring - High Pressure
$11599
5 day lead time
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
GATES part description
Product Description
Code 61 O-Ring Flange to Male Flat-Face O-Ring - High Pressure
Features & Benefits
- Flanges 1 in. (-16) and smaller have a maximum working pressure of 5,000 psi
- Flanges larger than 1 in. have a working pressure of 4,000 psi
- O-Ring not included
- Must be ordered separately
Product Attributes
| Thread Size | 1 7/16-12 |
| Adapter Type | SAE to SAE - High Pressure |
| Adapter Description | Code 61 O-Ring Flange to Male Flat-Face O-Ring - High Pressure |
| Industrial Description | 16FL5K-16MFFOR |
| Maximum Working Pressure | 5000 PS |
| Flange Thickness | .32 in |
| Flange Diameter | 1.75 IN |
| Flange Thickness | 8.1 MM |
| Flange Diameter | 44.5 MM |
Additional Information
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (Schedule B) | 7326908688 |
| UPC | 00072053285390 |
| VMRS Code | 059032033 |
| UNSPSC | 27121700 |
Part Interchanges
