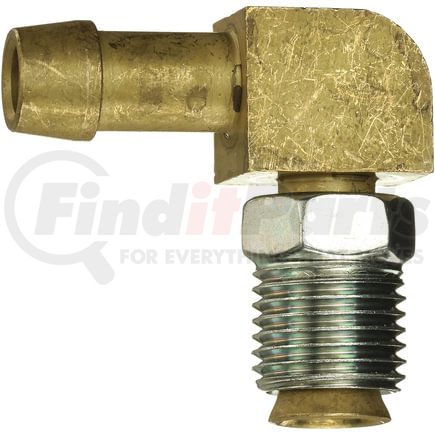

Gates G37504-0606 - Male SAE Inverted Flare Swivel - 90 (Single Bead)
$1349
5 day lead time
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
GATES part description
Product Description
Male SAE Inverted Flare Swivel - 90 (Single Bead)
Features & Benefits
- Use with low pressure hose such as multi-purpose or general purpose hose
- Single bead fittings are quick connecting, field attachable and reusable
- Temperature Range: -40 Deg. F to +250 Deg. F (-40 Deg. C to +121 Deg. C)
Product Attributes
| Coupling Description | Single Bead Male SAE Inverted Flare Swivel - 90 |
| Industrial Description | 6SB-6RMIX90 |
| Thread Size | 5/8-18 |
| Inside Diameter | .375 IN |
| Length | 1.4 IN |
| Maximum Working Pressure | 60 PS |
| Temperature Rating | -40 Deg. F to +250 Deg. F (-40 Deg. C to +121 Deg. C) |
| Material | 360 Brass |
| Inside Diameter | 9.7 MM |
| Length | 35.6 MM |
Additional Information
| Harmonized Tariff Code (Schedule B) | 7412200065 |
| Country of Origin (Primary) | US |
| UPC | 00029769144718 |
| VMRS Code | 059032012 |
| UNSPSC | 31163000 |
Part Interchanges
