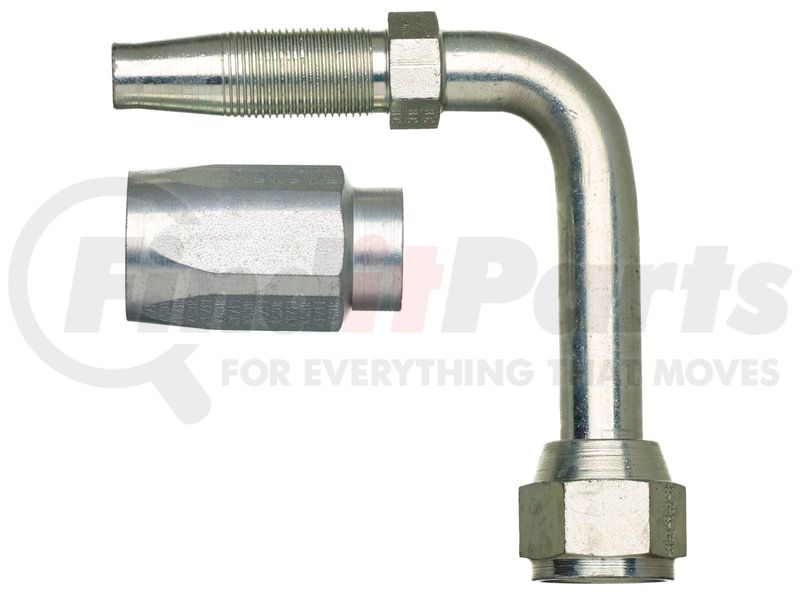

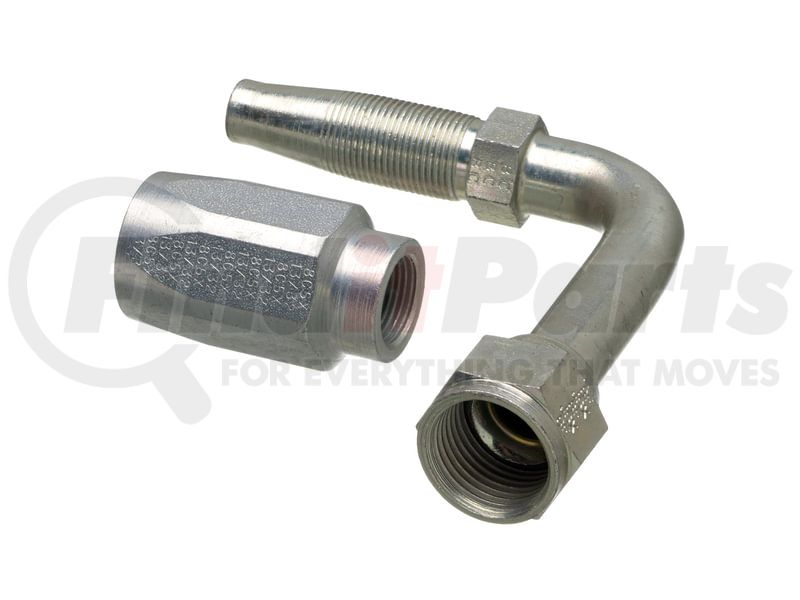

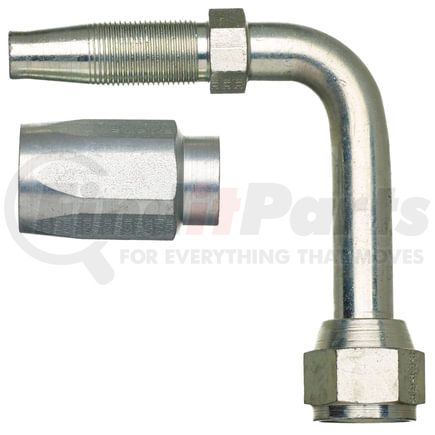

Gates G34181-0606 - Female JIC 37 Flare Swivel - 90 Bent Tube - Steel (C5CXH, C5C, C5D & C5M Hose)
$5749
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
GATES part description
Product Description
Female JIC 37 Flare Swivel - 90 Bent Tube - Steel (C5CXH, C5C, C5D & C5M Hose)
Features & Benefits
- Designed to perform with Gates C5 hose
- Zinc-plated carbon steel
- Meets DOT FMVSS 106-74 Type AII
Product Attributes
| Coupling Description | Field Attach C5CXH, C5C, C5D, C5M Female JIC 37 Flare Swivel - 90 Bent Tube - Steel |
| Industrial Description | 6C5-6RFJX90L |
| Thread Size | 9/16-18 |
| Inside Diameter | .3125 IN |
| Hydraulic Hose Recommendation | Gates C5C, C5D, C5CHX, C5M |
| Stem Hex Size | .5 IN |
| Nut Hex Size | .6875 IN |
| Drop Length | 2.19 IN |
| Cut-Off Length | 1.33 IN |
| Length | 2.28 IN |
| Inside Diameter | 7.9 MM |
| Drop Length | 55.6 MM |
| Cut-Off Length | 33.8 MM |
| Length | 57.9 MM |
Additional Information
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (Schedule B) | 7326908688 |
| UPC | 00072053160918 |
| VMRS Code | 059032012 |
| UNSPSC | 31163000 |
Part Interchanges
