GATES part description

Product Description

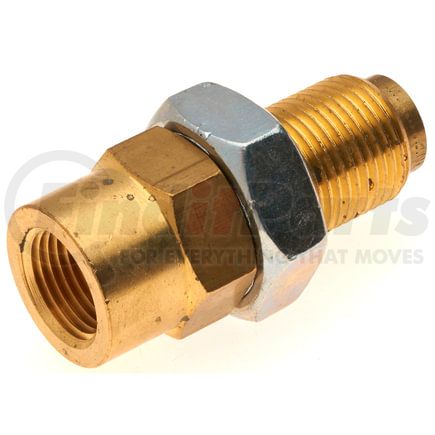

Air Brake to Female Pipe Bulkhead (SureLok)

Features & Benefits

  • Internal and external machined thread for connection to ports. Machining retains collet, tube support and O-Ring
  • Tube support prevents tube collapse during severe loading conditions
  • Collet teeth grip the tube, holding it firmly in the fitting
  • Internal O-Ring provides a seal and necessary interference between tube and fitting body

Product Attributes

Coupling Description SureLok Air Brake to Female Pipe Bulkhead
Industrial Description 8AB-6FP-BKHD
Thread Size 3/8-18
Outside Diameter .5 IN
9924 27 MM
9923 1.313 IN
Length 1.89 IN
Maximum Working Pressure 150 PS
Temperature Rating -40 Deg. F to +200 Deg. F (-40 Deg. C to +93 Deg. C)
Material 360 Brass
Seal Material Ethylene Propylene

Additional Information

Country of Origin (Primary) US
Harmonized Tariff Code (Schedule B) 7412200085
UPC 00029769205709
VMRS Code 059032033
UNSPSC 27121700

Part Interchanges

GATES G31360-0806 Cross Reference

We have 1 alternatives for the G31360-0806 by GATES:
