GATES part description

Product Description

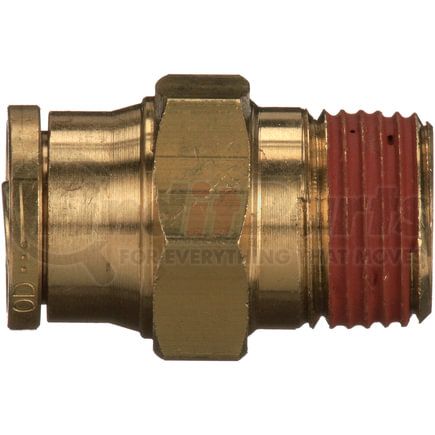

Air Brake to Male Pipe (SureLok)

Features & Benefits

  • Internal and external machined thread for connection to ports. Machining retains collet, tube support and O-Ring
  • Tube support prevents tube collapse during severe loading conditions
  • Collet teeth grip the tube, holding it firmly in the fitting
  • Internal O-Ring provides a seal and necessary interference between tube and fitting body

Product Attributes

Coupling Description SureLok Air Brake to Male Pipe
Industrial Description 6AB-6MP
Thread Size 3/8-18
Outside Diameter .375 IN
9924 .6875 IN
Length 1.42 IN
Maximum Working Pressure 150 PS
Temperature Rating -40 Deg. F to +200 Deg. F (-40 Deg. C to +93 Deg. C)
Material 360 Brass
Seal Material Ethylene Propylene

Additional Information

Harmonized Tariff Code (Schedule B) 7412200015
Country of Origin (Primary) US
UPC 00029769154427
VMRS Code 059032033
UNSPSC 27121700
