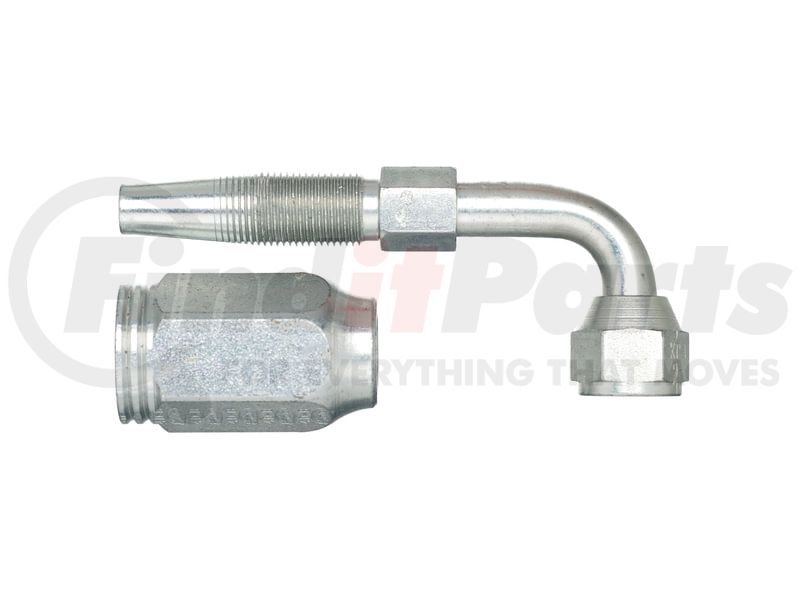

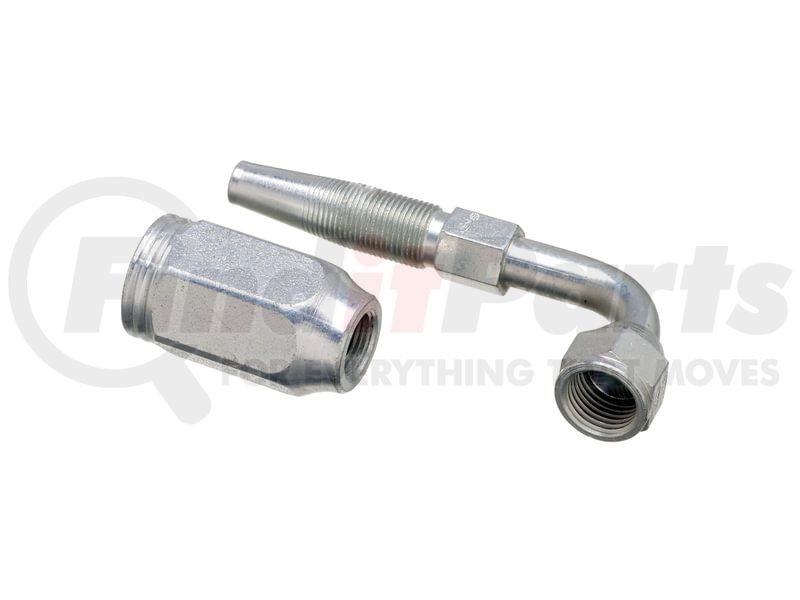

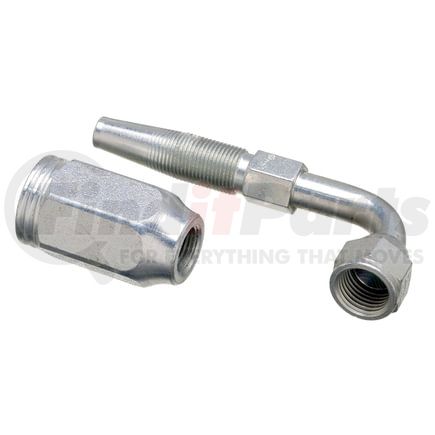

Gates G28180-0608 - Female JIC 37 Flare Swivel - 90 Bent Tube (Type T for G2 Hose - 2 Wire)
$6999
5 day lead time
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
GATES part description
Product Description
Female JIC 37 Flare Swivel - 90 Bent Tube (Type T for G2 Hose - 2 Wire)
Features & Benefits
- For use with G1, G2H and G2L hoses
- Popular threads from 1/2 in. to 1-1/2 in. I.D.
- See Gates Hydraulic Catalog 431-2080 for installation instructions
Product Attributes
| Coupling Description | Field Attachable Type T for G2 2-Wire Hose Female JIC 37 Flare Swivel - 90 Bent Tube |
| Industrial Description | 6C2AT-8RFJX90 |
| Thread Size | 3/4-16 |
| Inside Diameter | .375 IN |
| Hydraulic Hose Recommendation | Gates 2-Wire - Global G2, Global G2L PolarFlex (-4 through -24), Hot Oiler |
| Stem Hex Size | .625 IN |
| Nut Hex Size | .875 IN |
| Drop Length | 1.09 IN |
| Cut-Off Length | 2.35 IN |
| Length | 3.58 IN |
| Inside Diameter | 9.5 MM |
| Drop Length | 27.7 MM |
| Cut-Off Length | 59.7 MM |
| Length | 90.9 MM |
Additional Information
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (Schedule B) | 7326908688 |
| UPC | 00072053143638 |
| VMRS Code | 059032012 |
| UNSPSC | 31163000 |
Part Interchanges
