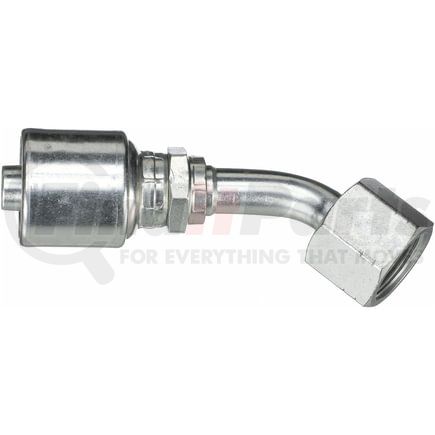

Gates G25911-0808 - Female Komatsu Style Japanese Metric Swivel - 45 Bent Tube (MegaCrimp)
$5999
MSRP: $60.31
Save: $0.32
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
GATES part description
Product Description
Female Komatsu Style Japanese Metric Swivel - 45 Bent Tube (MegaCrimp)
Features & Benefits
- Robust "bite-the-wire" crimp
- Robust “bite-the-wire” crimp
- Tested to an industry-leading 1,000,000 impulse cycles
- Simplifies inventory management
- Environmentally-friendly TuffCoat plating for 347 percent better corrosion resistance than the SAE Standard
- Popular thread styles also available with TuffCoat Xtreme plating for 583 percent better corrosion resistance than the SAE Standard
Product Attributes
| Coupling Description | MegaCrimp Female Komatsu Style Japanese Metric Swivel - 45 Bent Tube |
| Industrial Description | 8G-8FKX45 |
| Thread Size | M22X1.5 |
| Inside Diameter | .5 IN |
| Hydraulic Hose Recommendation | Can Accommodate Various Hose Outside Diameters on Both One-Wire & Two-Wire Braid Hydraulic Hose |
| Nut Hex Size | 27 MM |
| Drop Length | .71 IN |
| Cut-Off Length | 2.37 IN |
| Length | 3.85 IN |
| Seal Type | Mated Angle |
| Nose Seat Type | Standard |
| Mating Angle | 30 |
| Gender | Female |
| Bent Tube Angle | 45 |
| Swivel | Yes |
| SAE or Metric Threads | Metric |
| Inside Diameter | 12.7 MM |
| Drop Length | 18 MM |
| Cut-Off Length | 60.3 MM |
| Length | 97.7 MM |
Additional Information
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (Schedule B) | 8412909015 |
| UPC | 00072053544145 |
| VMRS Code | 059032012 |
| UNSPSC | 31163000 |
