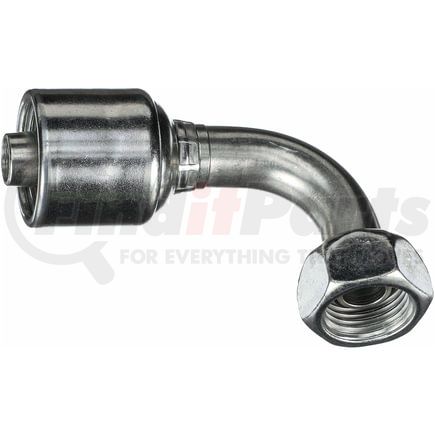

Gates G25832-1616 - Female British Standard Parallel Pipe O-Ring Swivel - 90 Bent Tube (MegaCrimp)
$14799
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
GATES part description
Product Description
Female British Standard Parallel Pipe O-Ring Swivel - 90 Bent Tube (MegaCrimp)
Features & Benefits
- Robust "bite-the-wire" crimp
- Robust “bite-the-wire” crimp
- Tested to an industry-leading 1,000,000 impulse cycles
- Simplifies inventory management
- Environmentally-friendly TuffCoat plating for 347 percent better corrosion resistance than the SAE Standard
- Popular thread styles also available with TuffCoat Xtreme plating for 583 percent better corrosion resistance than the SAE Standard
Product Attributes
| Coupling Description | MegaCrimp Female British Standard Parallel Pipe O-Ring Swivel - 90 Bent Tube |
| Industrial Description | 16G-16FBSPORX90 |
| Thread Size | 1-11 |
| Inside Diameter | 1 IN |
| Hydraulic Hose Recommendation | Can Accommodate Various Hose Outside Diameters on Both One-Wire & Two-Wire Braid Hydraulic Hose |
| Nut Hex Size | 41 MM |
| Drop Length | 2.76 IN |
| Cut-Off Length | 2.93 IN |
| Length | 4.69 IN |
| Seal Type | Mated Angle w/O-Ring |
| Termination | British |
| O-Ring Location | On Female w/Inverted Nose Seat |
| Seat Angle | 30 |
| Gender | Female |
| Bent Tube Angle | 90 |
| Swivel | Yes |
| Inside Diameter | 25.4 MM |
| Drop Length | 70 MM |
| Cut-Off Length | 74.3 MM |
| Length | 119.2 MM |
Additional Information
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (Schedule B) | 7326908688 |
| UPC | 00072053441338 |
| VMRS Code | 059032012 |
| UNSPSC | 31163000 |
