GATES G25830-1012 Part Description
Manufacturer
Product Description

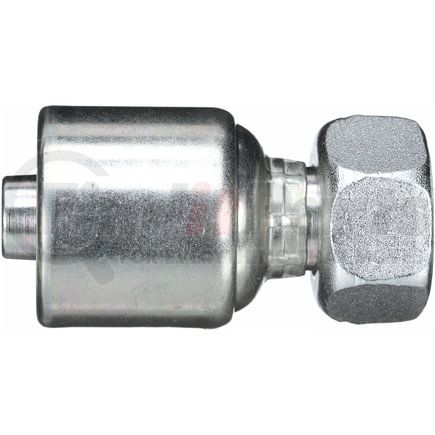

Female British Standard Parallel Pipe O-Ring Swivel (MegaCrimp)
Features & Benefits
- Robust "bite-the-wire" crimp
- Robust “bite-the-wire” crimp
- Tested to an industry-leading 1,000,000 impulse cycles
- Simplifies inventory management
- Environmentally-friendly TuffCoat plating for 347 percent better corrosion resistance than the SAE Standard
- Popular thread styles also available with TuffCoat Xtreme plating for 583 percent better corrosion resistance than the SAE Standard
GATES G25830-1012 Specifications
Product Attributes
| Coupling Description | MegaCrimp Female British Standard Parallel Pipe O-Ring Swivel |
| Industrial Description | 10G-12FBSPORX |
| Thread Size | 3/4-14 |
| Inside Diameter | .625 IN |
| Hydraulic Hose Recommendation | Can Accommodate Various Hose Outside Diameters on Both One-Wire & Two-Wire Braid Hydraulic Hose |
| Nut Hex Size | 32 MM |
| Cut-Off Length | .81 IN |
| Length | 2.74 IN |
| Seal Type | Mated Angle w/O-Ring |
| Termination | British |
| O-Ring Location | On Female w/Inverted Nose Seat |
| Seat Angle | 30 |
| Gender | Female |
| Bent Tube Angle | Straight |
| Swivel | Yes |
| Inside Diameter | 15.9 MM |
| Cut-Off Length | 20.5 MM |
| Length | 69.5 MM |
Additional Information
| Country of Origin (Primary) | MX |
| Harmonized Tariff Code (Schedule B) | 8412909015 |
| Stock Status | S |
| UPC | 00072053449273 |
| VMRS Code | 059032012 |
| UNSPSC | 31163000 |
GATES G25830-1012 Cross References
| Brand | Part Number |
|---|---|
| Dayco | 116040 |
| Goodyear | 14105-1012, B2-BPFX-1012 |
| N/A | 04032753, M20512-10-12 |
| NAPA | G25830-1012 |
| Parker | 19243-12-10 |
