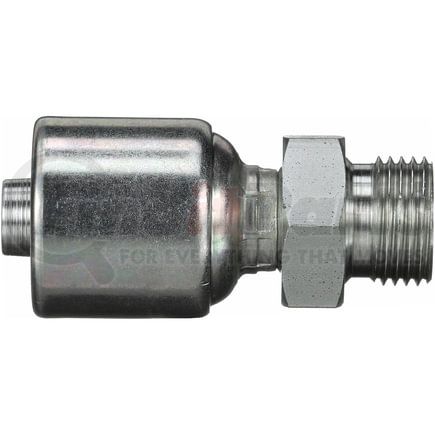

(888) 312-8812 Login SignupGATES G25810-1010 CL12-COUPLING
Tap to view 3 more
$3299
Limited availability at this price!
In Stock
Get it by Friday, Jul 17
GATES G25810-1010 Part Description
Manufacturer
Product Description
Male British Standard Parallel Pipe (MegaCrimp)
Features & Benefits
- Robust "bite-the-wire" crimp
- Robust “bite-the-wire” crimp
- Tested to an industry-leading 1 million impulse cycles
- Simplifies inventory management
- Environmentally-friendly TuffCoat plating for 347 percent better corrosion resistance SAE Standard
- Popular thread styles also available with TuffCoat Xtreme plating for 583 percent better corrosion resistance than the SAE standard
GATES G25810-1010 Specifications
Product Attributes
| Coupling Description | MegaCrimp Male British Standard Parallel Pipe |
| Industrial Description | 10G-10MBSPP |
| Thread Size | 5/8-14 |
| Inside Diameter | .625 IN |
| Hydraulic Hose Recommendation | Can Accommodate Various Hose Outside Diameters on Both One-Wire & Two-Wire Braid Hydraulic Hose |
| Stem Hex Size | 30 MM |
| Cut-Off Length | 1.36 IN |
| Length | 2.89 IN |
| Seal Type | Mated Angle w/O-Ring |
| Termination | British |
| O-Ring Location | On Female w/Inverted Nose Seat |
| Seat Angle | 30 |
| Gender | Male |
| Bent Tube Angle | Straight |
| Swivel | No |
| Inside Diameter | 15.9 MM |
| Cut-Off Length | 34.5 MM |
| Length | 73.5 MM |
Additional Information
| Country of Origin (Primary) | MX |
| Harmonized Tariff Code (Schedule B) | 8412909015 |
| Stock Status | S |
| UPC | 00072053447880 |
| VMRS Code | 059032012 |
| UNSPSC | 31163000 |
GATES G25810-1010 Cross References
| Brand | Part Number |
|---|---|
| Caterpillar | 154-0112 |
| Dayco | 116017 |
| Goodyear | 14130-1010, B2-BPM-1010 |
| N/A | 04032730, M10510-10-10 |
| NAPA | G25810-1010 |
| Weatherhead | 10UP60, 10ZP60, 10U-P60, 10Z-P60 |
