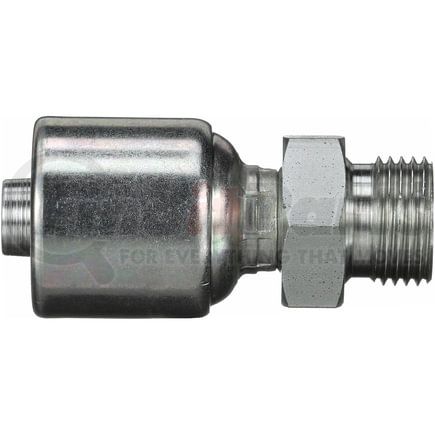

Gates G25810-0808 - CL12-8G-8MBSPP
$3199
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
GATES part description
Product Description
Male British Standard Parallel Pipe (MegaCrimp)
Features & Benefits
- Robust "bite-the-wire" crimp
- Robust “bite-the-wire” crimp
- Tested to an industry-leading 1 million impulse cycles
- Simplifies inventory management
- Environmentally-friendly TuffCoat plating for 347 percent better corrosion resistance SAE Standard
- Popular thread styles also available with TuffCoat Xtreme plating for 583 percent better corrosion resistance than the SAE standard
Product Attributes
| Bent Tube Angle | Straight |
| Swivel | No |
| Coupling Description | MegaCrimp Male British Standard Parallel Pipe |
| Industrial Description | 8G-8MBSPP |
| Thread Size | 1/2-14 |
| Inside Diameter | .5 IN |
| Hydraulic Hose Recommendation | Can Accommodate Various Hose Outside Diameters on Both One-Wire & Two-Wire Braid Hydraulic Hose |
| Stem Hex Size | 27 MM |
| Cut-Off Length | 1.22 IN |
| Length | 2.7 IN |
| Seal Type | Mated Angle w/O-Ring |
| Termination | British |
| O-Ring Location | On Female w/Inverted Nose Seat |
| Seat Angle | 30 |
| Gender | Male |
| Inside Diameter | 12.7 MM |
| Cut-Off Length | 31 MM |
| Length | 68.5 MM |
Additional Information
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (Schedule B) | 7326908688 |
| UPC | 00072053205787 |
| VMRS Code | 059032012 |
| UNSPSC | 31163000 |
Part Interchanges
