GATES part description

Product Description

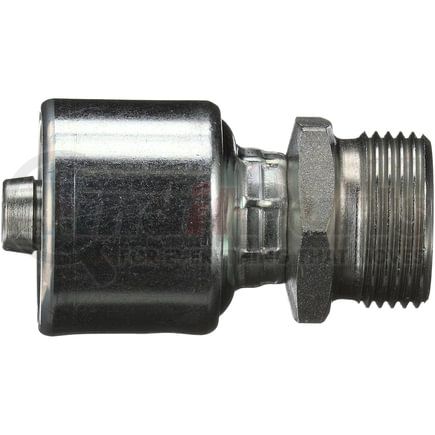

Male DIN 24 Cone - Light Series (MegaCrimp)

Features & Benefits

  • Robust "bite-the-wire" crimp
  • Robust “bite-the-wire” crimp
  • Tested to an industry-leading 1 million impulse cycles
  • Simplifies inventory management
  • Environmentally-friendly TuffCoat plating for 347 percent better corrosion resistance SAE Standard
  • Popular thread styles also available with TuffCoat Xtreme plating for 583 percent better corrosion resistance than the SAE standard

Product Attributes

Coupling Description MegaCrimp Male DIN 24 Cone - Light Series
Industrial Description 6G-12MDL
Thread Size M18X1.5
Inside Diameter .375 IN
Hydraulic Hose Recommendation Can Accommodate Various Hose Outside Diameters on Both One-Wire & Two-Wire Braid Hydraulic Hose
Outside Diameter 12 MM
Stem Hex Size 19 MM
Cut-Off Length .97 IN
Length 2.07 IN
Seal Type Mated Angle w/O-Ring
Termination DIN
O-Ring Location On Female w/Inverted Nose Seat
Seat Angle 24
DIN Series Light
Gender Male
Bent Tube Angle Straight
Swivel No
Inside Diameter 9.5 MM
Cut-Off Length 24.6 MM
Length 52.5 MM

Additional Information

Harmonized Tariff Code (Schedule B) 7326908688
UPC 00770075809517
VMRS Code 059032012
UNSPSC 31163000
