Gates G25504-0606 - CL12-6G-6MIX90
$1849
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
GATES part description
Product Description

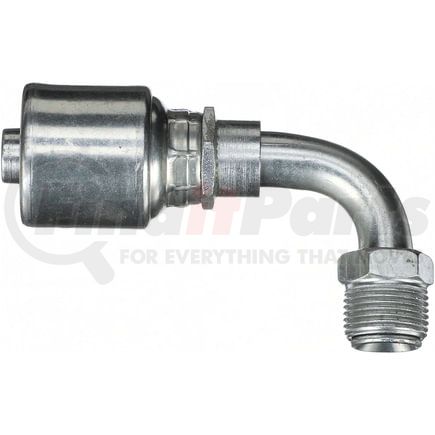

SAE Male Inverted Swivel - 90 Bent Tube (MegaCrimp)
Features & Benefits
- Robust "bite-the-wire" crimp
- Robust “bite-the-wire” crimp
- Tested to an industry-leading 1 million impulse cycles
- Simplifies inventory management
- Environmentally-friendly TuffCoat plating for 347 percent better corrosion resistance SAE Standard
- Popular thread styles also available with TuffCoat Xtreme plating for 583 percent better corrosion resistance than the SAE standard
Product Attributes
| Coupling Description | MegaCrimp SAE Male Inverted Swivel - 90 Bent Tube |
| Industrial Description | 6G-6MIX90 |
| Thread Size | 5/8-18 |
| Inside Diameter | .375 IN |
| Hydraulic Hose Recommendation | Can Accommodate Various Hose Outside Diameters on Both One-Wire & Two-Wire Braid Hydraulic Hose |
| Nut Hex Size | .625 IN |
| Drop Length | 1.38 IN |
| Cut-Off Length | 1.7 IN |
| Length | 2.8 IN |
| Seal Type | Mated Angle |
| Nose Seat Type | Inverted |
| Mating Angle | 45 |
| Gender | Male |
| Bent Tube Angle | 90 |
| Swivel | Yes |
| Inside Diameter | 9.5 MM |
| Drop Length | 35.1 MM |
| Cut-Off Length | 43.1 MM |
| Length | 71 MM |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8412909015 |
| Country of Origin (Primary) | US |
| UPC | 00072053115239 |
| VMRS Code | 059032012 |
| UNSPSC | 31163000 |
Part Interchanges
- Aeroquip 1AA6MFB6
- Aeroquip FJ9516-0606S
- Parker 16943-06-06
- Parker 16943-6-6
- Parker 169HY-6-6
- Dayco 108470
- Weatherhead 06EB66
- Weatherhead 06EEB66
- Weatherhead 06UB66
- Weatherhead 06ZB66
- Goodyear 14815-0606
- Goodyear B2-SIMX90-0606
- Goodyear B2SIMX900606
- Goodyear T7-SIMX90-0606
- Goodyear T8-SIMX90-0606
- NAPA G25504-0606
- Kurt Hydraulics MIX90-06-06
