GATES G25504-0605 Part Description
Manufacturer
Product Description

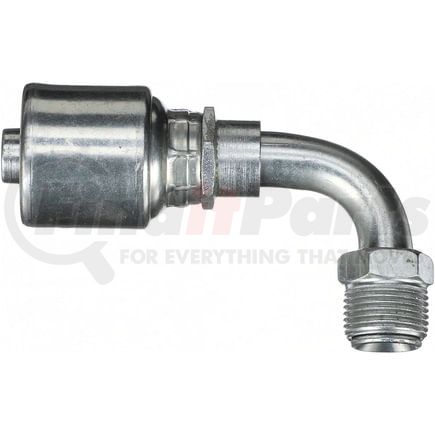

SAE Male Inverted Swivel - 90 Bent Tube (MegaCrimp)
Features & Benefits
- Robust "bite-the-wire" crimp
- Robust “bite-the-wire” crimp
- Tested to an industry-leading 1 million impulse cycles
- Simplifies inventory management
- Environmentally-friendly TuffCoat plating for 347 percent better corrosion resistance SAE Standard
- Popular thread styles also available with TuffCoat Xtreme plating for 583 percent better corrosion resistance than the SAE standard
GATES G25504-0605 Specifications
Product Attributes
| Coupling Description | MegaCrimp SAE Male Inverted Swivel - 90 Bent Tube |
| Industrial Description | 6G-5MIX90 |
| Thread Size | 1/2-20 |
| Inside Diameter | .375 IN |
| Hydraulic Hose Recommendation | Can Accommodate Various Hose Outside Diameters on Both One-Wire & Two-Wire Braid Hydraulic Hose |
| Nut Hex Size | .5 IN |
| Drop Length | 1.38 IN |
| Cut-Off Length | 1.4 IN |
| Length | 2.5 IN |
| Seal Type | Mated Angle |
| Nose Seat Type | Inverted |
| Mating Angle | 45 |
| Gender | Male |
| Bent Tube Angle | 90 |
| Swivel | Yes |
| Inside Diameter | 9.5 MM |
| Drop Length | 35.1 MM |
| Cut-Off Length | 35.6 MM |
| Length | 63.5 MM |
Additional Information
| Country of Origin (Primary) | MX |
| Harmonized Tariff Code (Schedule B) | 8412909015 |
| Stock Status | S |
| UPC | 00072053172928 |
| VMRS Code | 059032012 |
| UNSPSC | 31163000 |
GATES G25504-0605 Cross References
| Brand | Part Number |
|---|---|
| Aeroquip | 1AA5MFB6 |
| Caterpillar | 154-0089 |
| Dayco | 108469, HY06-05MF90T |
| Goodyear | 14815-0605, B2-SIMX90-0605, B2SIMX900605 |
| Kurt Hydraulics | MIX90-06-05 |
| N/A | 04032477 |
| NAPA | G25504-0605 |
| Parker | 16943-05-06, 16943-5-6, 169HY-5-6 |
| Weatherhead | 06EB65, 06EEB65, 06UB65, 06ZB65, 06U-B65, 06Z-B65, 06E-B65 |
