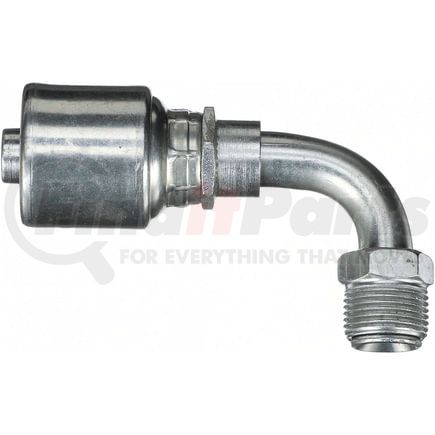

(888) 312-8812 Login SignupGATES G25504-0404 SAE Male Inverted Swivel - 90 Bent Tube (MegaCrimp)
Tap to view 3 more
$3049
Limited availability at this price!
In Stock
Get it by Thursday, Jul 2
GATES G25504-0404 Part Description
Manufacturer
Product Description
SAE Male Inverted Swivel - 90 Bent Tube (MegaCrimp)
Features & Benefits
- Robust "bite-the-wire" crimp
- Robust “bite-the-wire” crimp
- Tested to an industry-leading 1 million impulse cycles
- Simplifies inventory management
- Environmentally-friendly TuffCoat plating for 347 percent better corrosion resistance SAE Standard
- Popular thread styles also available with TuffCoat Xtreme plating for 583 percent better corrosion resistance than the SAE standard
GATES G25504-0404 Specifications
Product Attributes
| Coupling Description | MegaCrimp SAE Male Inverted Swivel - 90 Bent Tube |
| Industrial Description | 4G-4MIX90 |
| Thread Size | 7/16-24 |
| Inside Diameter | .25 IN |
| Hydraulic Hose Recommendation | Can Accommodate Various Hose Outside Diameters on Both One-Wire & Two-Wire Braid Hydraulic Hose |
| Nut Hex Size | .4375 IN |

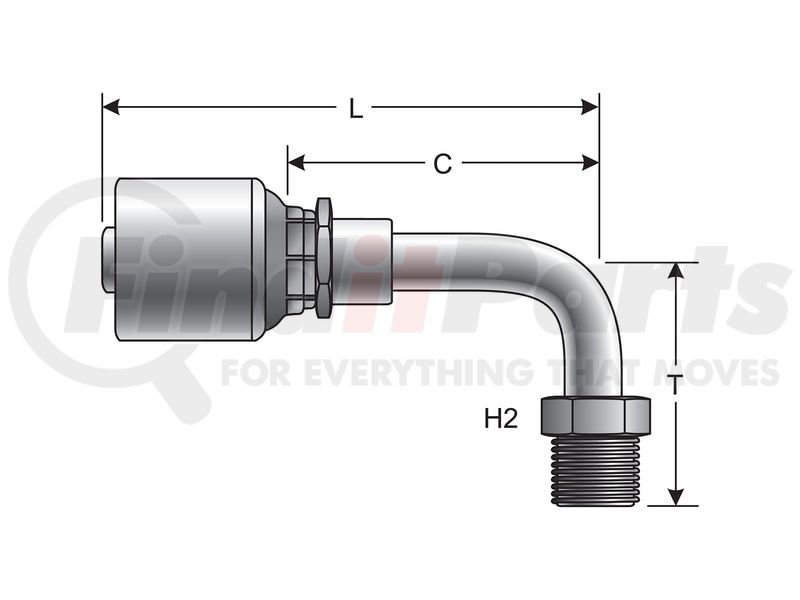

| Drop Length | 1.38 IN |
| Cut-Off Length | 1.31 IN |
| Length | 2.33 IN |
| Seal Type | Mated Angle |
| Nose Seat Type | Inverted |
| Mating Angle | 45 |
| Gender | Male |
| Bent Tube Angle | 90 |
| Swivel | Yes |
| Inside Diameter | 6.4 MM |
| Drop Length | 35.1 MM |
| Cut-Off Length | 33.2 MM |
| Length | 59.2 MM |
Additional Information
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (Schedule B) | 8412909015 |
| Stock Status | S |
| UPC | 00072053111521 |
| VMRS Code | 059032012 |
| UNSPSC | 31163000 |
GATES G25504-0404 Cross References
| Brand | Part Number |
|---|---|
| Aeroquip | 1AA4MFB4, FJ9516-0404S |
| Caterpillar | 124-2046 |
| Dayco | 108465, HY04-04MF90T |
| Goodyear | 14815-0404, B2-SIMX90-0404, B2SIMX900404, T7-SIMX90-0404 |
| Kurt Hydraulics | MIX90-04-04 |
| N/A | 04032472, HU04-04MF90T |
| NAPA | G25504-0404 |
| Parker | 16943-04-04, 16943-4-4, 169HY-4-4 |
| Weatherhead | 04EB64, 04EEB64, 04UB64, 04ZB64, 04E-B64, 04Z-B64, 04U-B64 |
