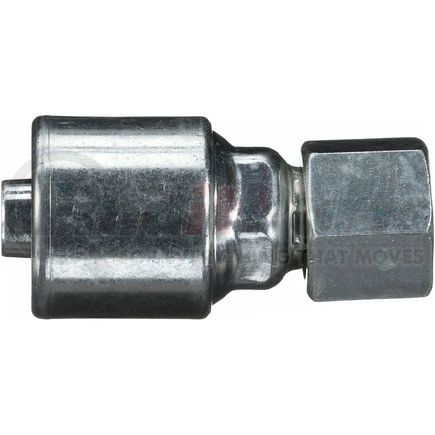

Gates G25230-0608 - Female Flat-Face O-Ring Swivel (MegaCrimp)
$1849
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
GATES part description
Product Description
Female Flat-Face O-Ring Swivel (MegaCrimp)
Features & Benefits
- Robust "bite-the-wire" crimp
- Robust “bite-the-wire” crimp
- Tested to an industry-leading 1,000,000 impulse cycles
- Simplifies inventory management
- Environmentally-friendly TuffCoat plating for 347 percent better corrosion resistance than the SAE Standard
- Popular thread styles also available with TuffCoat Xtreme plating for 583 percent better corrosion resistance than the SAE Standard
Product Attributes
| Coupling Description | MegaCrimp Female Flat-Face O-Ring Swivel |
| Industrial Description | 6G-8FFORX |
| Thread Size | 13/16-16 |
| Inside Diameter | .375 IN |
| Hydraulic Hose Recommendation | Can Accommodate Various Hose Outside Diameters on Both One-Wire & Two-Wire Braid Hydraulic Hose |
| Stem Hex Size | 18 MM |
| Nut Hex Size | 24 MM |
| Cut-Off Length | 1.13 IN |
| Length | 2.26 IN |
| Seal Type | O-Ring |
| O-Ring Location | Flat Face O-Ring |
| Gender | Female |
| Bent Tube Angle | Straight |
| Swivel | Yes |
| Bulkhead | No |
| Inside Diameter | 9.5 MM |
| Cut-Off Length | 28.6 MM |
| Length | 57.4 MM |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8412909015 |
| Country of Origin (Primary) | US |
| UPC | 00072053323634 |
| VMRS Code | 059032012 |
| UNSPSC | 31163000 |
Part Interchanges
- Aeroquip 1AA8FR6
- Parker 1JC43-08-06
- Parker 1JC43-8-6
- Parker 1JS43-08-06
- Parker 1JS43-8-6
- Parker 1JSHY-8-6
- Dayco 108714
- Dayco 149429A
- Dayco 151714
- Weatherhead 06EES68
- Weatherhead 06ES68
- Weatherhead 06US68
- Weatherhead 06ZS68
- Caterpillar 124-2116
- Goodyear 13700-0608
- Goodyear 14700-0608
- Goodyear B2-OFFX-0608
- Goodyear T7-OFFX-0608
- Goodyear UC-OFFX-0608
- NAPA G25230-0608
- Kurt Hydraulics FFX-06-08
