GATES G25175-2020 Part Description
Manufacturer
Product Description

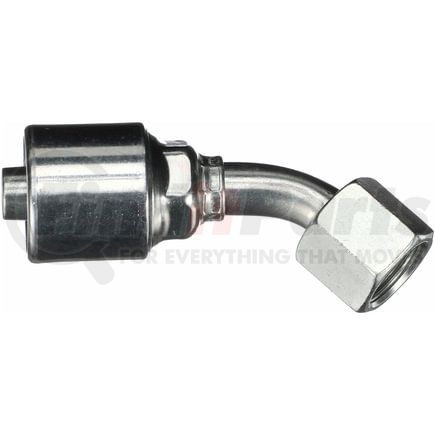

Female JIC 37 Flare Swivel - 45 Bent Tube (MegaCrimp)
Features & Benefits
- Robust "bite-the-wire" crimp
- Robust “bite-the-wire” crimp
- Tested to an industry-leading 1 million impulse cycles
- Simplifies inventory management
- Environmentally-friendly TuffCoat plating for 347 percent better corrosion resistance SAE Standard
- Popular thread styles also available with TuffCoat Xtreme plating for 583 percent better corrosion resistance than the SAE standard
GATES G25175-2020 Specifications
Product Attributes
| Coupling Description | MegaCrimp Female JIC 37 Flare Swivel - 45 Bent Tube |
| Industrial Description | 20G-20FJX45-035 |
| Thread Size | 1 5/8-12 |
| Inside Diameter | 1.25 IN |
| Hydraulic Hose Recommendation | Can Accommodate Various Hose Outside Diameters on Both One-Wire & Two-Wire Braid Hydraulic Hose |
| Nut Hex Size | 50 MM |
| Drop Length | 1.38 IN |
| Cut-Off Length | 4.33 IN |
| Length | 6.65 IN |
| Seal Type | Mated Angle |
| Nose Seat Type | Standard |
| Mating Angle | 37 |
| Gender | Female |
| Bent Tube Angle | 45 |
| Swivel | Yes |
| Inside Diameter | 31.8 MM |
| Drop Length | 35 MM |
| Cut-Off Length | 110 MM |
| Length | 169 MM |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8412909015 |
| Country of Origin (Primary) | US |
| Stock Status | S |
| UPC | 00072053456462 |
| VMRS Code | 059032012 |
| UNSPSC | 31163000 |
