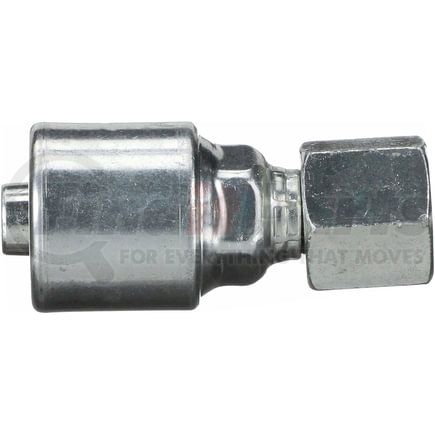

Gates G25170-0405 - CL12-4G-5FJX
$799
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
GATES part description
Product Description
Female JIC 37 Flare Swivel (MegaCrimp)
Features & Benefits
- Robust "bite-the-wire" crimp
- Robust “bite-the-wire” crimp
- Tested to an industry-leading 1 million impulse cycles
- Simplifies inventory management
- Environmentally-friendly TuffCoat plating for 347 percent better corrosion resistance SAE Standard
- Popular thread styles also available with TuffCoat Xtreme plating for 583 percent better corrosion resistance than the SAE standard
Product Attributes
| Coupling Description | MegaCrimp Female JIC 37 Flare Swivel |
| Industrial Description | 4G-5FJX |
| Thread Size | 1/2-20 |
| Inside Diameter | .25 IN |
| Hydraulic Hose Recommendation | Can Accommodate Various Hose Outside Diameters on Both One-Wire & Two-Wire Braid Hydraulic Hose |
| Stem Hex Size | 15 MM |
| Nut Hex Size | 17 MM |
| Cut-Off Length | 1.27 IN |
| Length | 2.3 IN |
| Seal Type | Mated Angle |
| Nose Seat Type | Standard |
| Mating Angle | 37 |
| Gender | Female |
| Bent Tube Angle | Straight |
| Swivel | Yes |
| Inside Diameter | 6.4 MM |
| Cut-Off Length | 32.3 MM |
| Length | 58.3 MM |
Additional Information
| Harmonized Tariff Code (Schedule B) | 7326908688 |
| Country of Origin (Primary) | US |
| UPC | 00072053323030 |
| VMRS Code | 059032012 |
| UNSPSC | 31163000 |
Part Interchanges
- Aeroquip 1AA5FJ4
- Aeroquip FJ9122-0504S
- Parker 10643-05-04
- Parker 10643-5-4
- Parker 106HY-5-4
- Dayco 100641
- Dayco 108066
- Dayco 108491
- Dayco 151066
- Weatherhead 04E605
- Weatherhead 04EE605
- Weatherhead 04U605
- Weatherhead 04Z605
- Caterpillar 124-1951
- Goodyear 13400-0405
- Goodyear 14400-0405
- Goodyear B2-JCFX-0405
- Goodyear T7-JCFX-0405
- Goodyear T8-JCFX-0405
- NAPA G25170-0405
- Kurt Hydraulics FJX-04-05
