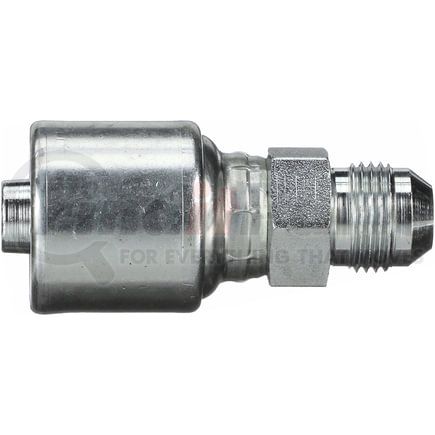

Gates G25165-0606 - 6G-6MJ
$1549
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
GATES part description
Product Description
Male JIC 37 Flare (MegaCrimp)
Features & Benefits
- Robust "bite-the-wire" crimp
- Robust “bite-the-wire” crimp
- Tested to an industry-leading 1 million impulse cycles
- Simplifies inventory management
- Environmentally-friendly TuffCoat plating for 347 percent better corrosion resistance SAE Standard
- Popular thread styles also available with TuffCoat Xtreme plating for 583 percent better corrosion resistance than the SAE standard
Product Attributes
| Coupling Description | MegaCrimp Male JIC 37 Flare |
| Industrial Description | 6G-6MJ |
| Thread Size | 9/16-18 |
| Inside Diameter | .375 IN |
| Hydraulic Hose Recommendation | Can Accommodate Various Hose Outside Diameters on Both One-Wire & Two-Wire Braid Hydraulic Hose |
| Stem Hex Size | 17 MM |
| Cut-Off Length | 1.2 IN |
| Length | 2.3 IN |
| Seal Type | Mated Angle |
| Nose Seat Type | Standard |
| Mating Angle | 37 |
| Gender | Male |
| Bent Tube Angle | Straight |
| Swivel | No |
| Inside Diameter | 9.5 MM |
| Cut-Off Length | 30.6 MM |
| Length | 58.5 MM |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8412909015 |
| Country of Origin (Primary) | US |
| UPC | 00072053322941 |
| VMRS Code | 059032012 |
| UNSPSC | 31163000 |
Part Interchanges
- Aeroquip 1AA6MJ6
- Aeroquip FJ9125-0606S
- Parker 10343-06-06
- Parker 10343-6-6
- Parker 103HY-6-6
- Dayco 108215
- Dayco 151215
- Weatherhead 06E506
- Weatherhead 06EE506
- Weatherhead 06U506
- Weatherhead 06Z506
- Weatherhead 33606E-506
- Weatherhead 33606E506
- Caterpillar 124-1940
- Goodyear 13450-0606
- Goodyear 14450-0606
- Goodyear B2-JCM-0606
- Goodyear T8-JCM-0606
- NAPA G25165-0606
- Kurt Hydraulics MJ-06-06
- Hydraulink S18-0906
