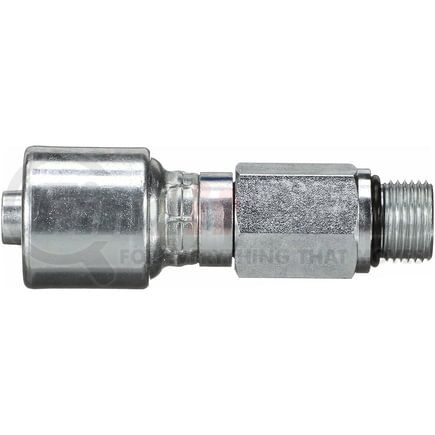

Gates G25121-0606 - Male O-Ring Boss Swivel (MegaCrimp)
$2399
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
GATES part description
Product Description
Male O-Ring Boss Swivel (MegaCrimp)
Features & Benefits
- Robust "bite-the-wire" crimp
- Robust “bite-the-wire” crimp
- Tested to an industry-leading 1,000,000 impulse cycles
- Simplifies inventory management
- Environmentally-friendly TuffCoat plating for 347 percent better corrosion resistance than the SAE Standard
- Popular thread styles also available with TuffCoat Xtreme plating for 583 percent better corrosion resistance than the SAE Standard
Product Attributes
| Coupling Description | MegaCrimp Male O-Ring Boss Swivel |
| Industrial Description | 6G-6MBX |
| Thread Size | 9/16-18 |
| Inside Diameter | .375 IN |
| Hydraulic Hose Recommendation | Can Accommodate Various Hose Outside Diameters on Both One-Wire & Two-Wire Braid Hydraulic Hose |
| Nut Hex Size | 22 MM |
| Cut-Off Length | 2.23 IN |
| Length | 3.33 IN |
| Seal Type | O-Ring |
| O-Ring Location | Outside O-Ring Boss |
| Gender | Male |
| Bent Tube Angle | Straight |
| Swivel | Yes |
| Inside Diameter | 9.5 MM |
| Cut-Off Length | 56.6 MM |
| Length | 84.5 MM |
Additional Information
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (Schedule B) | 7326908688 |
| UPC | 00072053323504 |
| VMRS Code | 059032012 |
| UNSPSC | 31163000 |
Part Interchanges
