(888) 312-8812 Login SignupGATES G25120-0606 CL12-6G-6MB
Tap to view 3 more
$949
Limited availability at this price!
In Stock
Get it by Monday, Dec 22

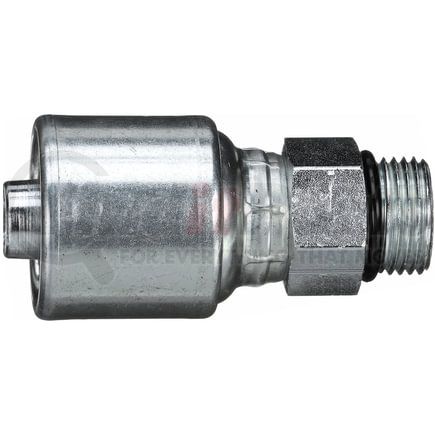

GATES G25120-0606 Part Description
Manufacturer
Product Description
Male O-Ring Boss (MegaCrimp)
Features & Benefits
- Robust "bite-the-wire" crimp
- Robust “bite-the-wire” crimp
- Tested to an industry-leading 1,000,000 impulse cycles
- Simplifies inventory management
- Environmentally-friendly TuffCoat plating for 347 percent better corrosion resistance than the SAE Standard
- Popular thread styles also available with TuffCoat Xtreme plating for 583 percent better corrosion resistance than the SAE Standard
GATES G25120-0606 Specifications
Product Attributes
| Coupling Description | MegaCrimp Male O-Ring Boss |
| Industrial Description | 6G-6MB |
| Thread Size | 9/16-18 |
| Inside Diameter | .375 IN |
| Hydraulic Hose Recommendation | Can Accommodate Various Hose Outside Diameters on Both One-Wire & Two-Wire Braid Hydraulic Hose |
| Stem Hex Size | .6875 IN |
| Cut-Off Length | 1.11 IN |
| Length | 2.2 IN |
| Seal Type | O-Ring |
| O-Ring Location | Outside O-Ring Boss |
| Gender | Male |
| Bent Tube Angle | Straight |
| Swivel | No |
| Inside Diameter | 9.5 MM |
| Cut-Off Length | 28.1 MM |
| Length | 56 MM |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8412909015 |
| Country of Origin (Primary) | US |
| UPC | 00072053323450 |
| VMRS Code | 059032012 |
| UNSPSC | 31163000 |
GATES G25120-0606 Part Interchanges
| Brand | Part Number |
|---|---|
| Aeroquip | 1AA6MB6, FJ9124-0606S |
| Parker | 10543-06-06, 10543-6-6, 105HY-6-6 |
| Dayco | 108280, 151100 |
| Weatherhead | 06U44T, 06UP06, 06ZP06, 33606E-P06, 33606EP06 |
| Caterpillar | 124-1929 |
| Goodyear | 13670-0606, 14670-0606, B2-OBM-0606, T8-OBM-0606, UC-OBM-0606 |
| NAPA | G25120-0606 |
| Kurt Hydraulics | MB-06-06 |
