GATES G25105-1012 Part Description
Manufacturer
Product Description

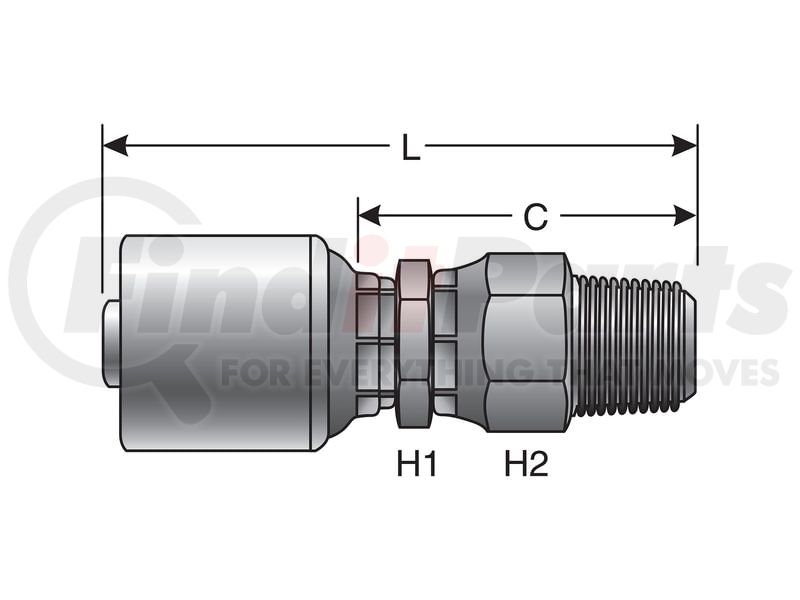

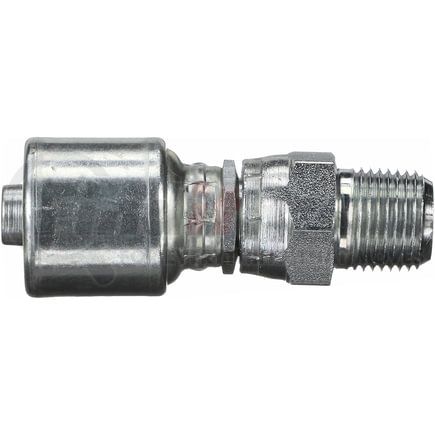

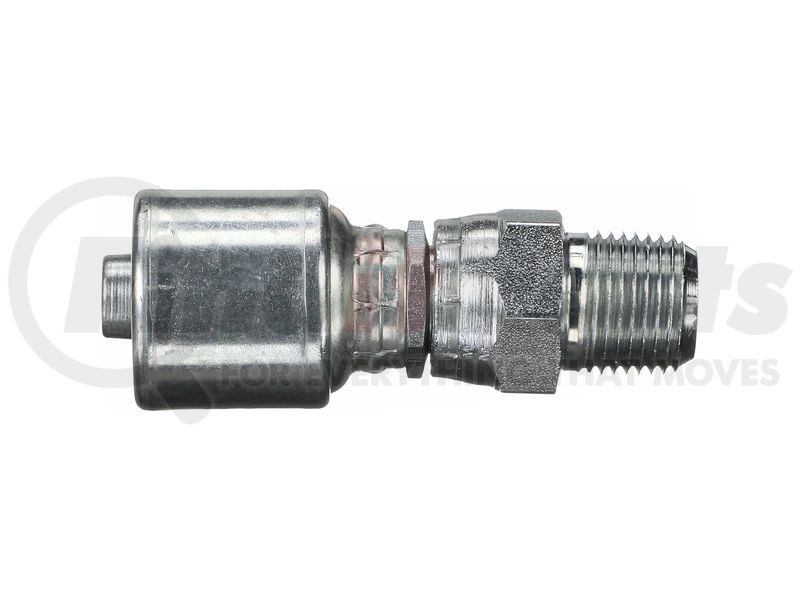

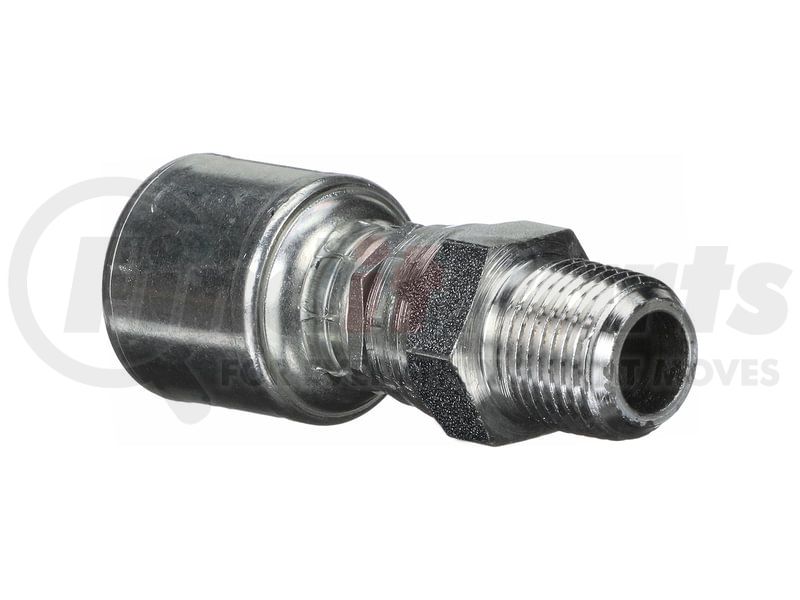

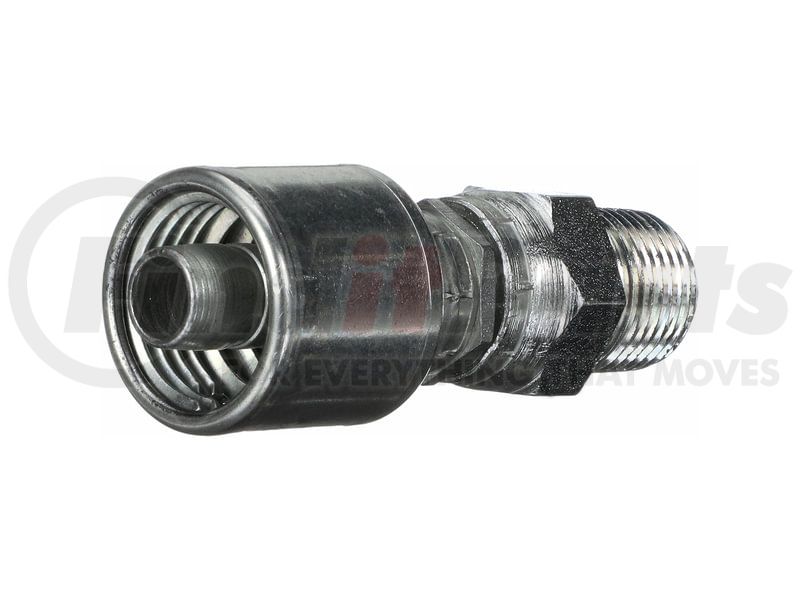

Male Pipe Swivel (NPTF - Without 30 Cone Seat) (MegaCrimp)
Features & Benefits
- Robust "bite-the-wire" crimp
- Robust “bite-the-wire” crimp
- Tested to an industry-leading 1,000,000 impulse cycles
- Simplifies inventory management
- Environmentally-friendly TuffCoat plating for 347 percent better corrosion resistance than the SAE Standard
- Popular thread styles also available with TuffCoat Xtreme plating for 583 percent better corrosion resistance than the SAE Standard
GATES G25105-1012 Specifications
Product Attributes
| Coupling Description | MegaCrimp Male Pipe Swivel (NPTF - w/o 30 Cone Seat) |
| Industrial Description | 10G-12MPX |
| Thread Size | 3/4-14 |
| Inside Diameter | .625 IN |
| Hydraulic Hose Recommendation | Can Accommodate Various Hose Outside Diameters on Both One-Wire & Two-Wire Braid Hydraulic Hose |
| Stem Hex Size | 1.063 IN |
| Nut Hex Size | 1.3125 IN |
| Cut-Off Length | 2.01 IN |
| Length | 3.48 IN |
| Seal Type | Thread Interference |
| Thread Angle | 60 |
| Gender | Male |
| Bent Tube Angle | Straight |
| Swivel | Yes |
| Inside Diameter | 15.9 MM |
| Cut-Off Length | 51.1 MM |
| Length | 88.4 MM |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8412909015 |
| Country of Origin (Primary) | US |
| Stock Status | S |
| UPC | 00072053171709 |
| VMRS Code | 059032012 |
| UNSPSC | 31163000 |
GATES G25105-1012 Cross References
| Brand | Part Number |
|---|---|
| Dayco | 108192 |
| N/A | 04031667 |
| NAPA | G25105-1012 |
