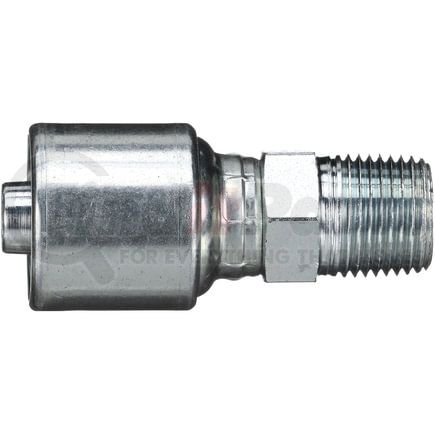

(888) 312-8812 Login SignupGATES G25100-1012 10G-12MP
Tap to view 3 more
$1199
Limited availability at this price!
In Stock
Get it by Tuesday, Dec 23
GATES G25100-1012 Part Description
Manufacturer
Product Description
Male Pipe (NPTF - 30 Cone Seat) (MegaCrimp)
Features & Benefits
- Robust "bite-the-wire" crimp
- Robust “bite-the-wire” crimp
- Tested to an industry-leading 1 million impulse cycles
- Simplifies inventory management
- Environmentally-friendly TuffCoat plating for 347 percent better corrosion resistance SAE Standard
- Popular thread styles also available with TuffCoat Xtreme plating for 583 percent better corrosion resistance than the SAE standard
GATES G25100-1012 Specifications
Product Attributes
| Coupling Description | MegaCrimp Male Pipe (NPTF - 30 Cone Seat) |
| Industrial Description | 10G-12MP |
| Thread Size | 3/4-14 |
| Inside Diameter | .625 IN |
| Hydraulic Hose Recommendation | Can Accommodate Various Hose Outside Diameters on Both One-Wire & Two-Wire Braid Hydraulic Hose |
| Stem Hex Size | 1.063 IN |
| Cut-Off Length | 1.48 IN |
| Length | 2.95 IN |
| Seal Type | Thread Interference/Mated Angle |
| Nose Seat Type | Inverted |
| Thread Angle | 60 |
| Mating Angle | 30 |
| Gender | Male |
| Bent Tube Angle | Straight |
| Swivel | No |
| Inside Diameter | 15.9 MM |
| Cut-Off Length | 37.5 MM |
| Length | 75 MM |
Additional Information
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (Schedule B) | 8412909015 |
| UPC | 00072053170931 |
| VMRS Code | 059032012 |
| UNSPSC | 31163000 |
GATES G25100-1012 Part Interchanges
| Brand | Part Number |
|---|---|
| Aeroquip | 1AA12MP10, FJ9121-1210S |
| Parker | 10143-12-10, 101HY-12-10 |
| Dayco | 100891, 108254 |
| Weatherhead | 10U112, 10Z112 |
| Goodyear | 14615-1012, 14645-1012, B2-NPM-1012 |
| NAPA | G25100-1012 |
| Kurt Hydraulics | MP-1-12 |
