GATES G25100-0806 Part Description
Manufacturer
Product Description
Male Pipe (NPTF - 30 Cone Seat) (MegaCrimp)
Features & Benefits
- Robust "bite-the-wire" crimp
- Robust “bite-the-wire” crimp
- Tested to an industry-leading 1 million impulse cycles
- Simplifies inventory management
- Environmentally-friendly TuffCoat plating for 347 percent better corrosion resistance SAE Standard
- Popular thread styles also available with TuffCoat Xtreme plating for 583 percent better corrosion resistance than the SAE standard
GATES G25100-0806 Specifications
Product Attributes
| Coupling Description | MegaCrimp Male Pipe (NPTF - 30 Cone Seat) |
| Industrial Description | 8G-6MP |
| Thread Size | 3/8-18 |
| Inside Diameter | .5 IN |
| Hydraulic Hose Recommendation | Can Accommodate Various Hose Outside Diameters on Both One-Wire & Two-Wire Braid Hydraulic Hose |
| Stem Hex Size | .8125 IN |

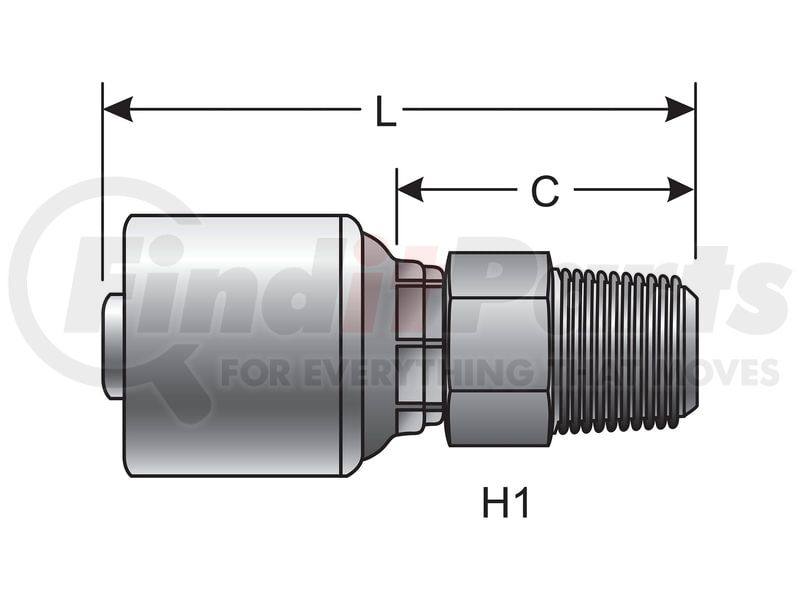

| Cut-Off Length | 1.24 IN |
| Length | 2.72 IN |
| Seal Type | Thread Interference/Mated Angle |
| Nose Seat Type | Inverted |
| Thread Angle | 60 |
| Mating Angle | 30 |
| Gender | Male |
| Bent Tube Angle | Straight |
| Swivel | No |
| Inside Diameter | 12.7 MM |
| Cut-Off Length | 31.5 MM |
| Length | 69 MM |
Additional Information
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (Schedule B) | 8412909015 |
| Stock Status | S |
| UPC | 00072053322651 |
| VMRS Code | 059032012 |
| UNSPSC | 31163000 |
GATES G25100-0806 Cross References
| Brand | Part Number |
|---|---|
| Aeroquip | 1AA6MP8, FJ9121-0608S |
| Caterpillar | 124-1899, 9X-3911 |
| Dayco | 108248, 151248, HY08-06MP, DC08-06MP |
| Eaton | 08Z-106 |
| Goodyear | 13615-0806, 14615-0806, B2-NPM-0806, T7-NPM-0806, T8-NPM-0806 |
| Kurt Hydraulics | MP-8-6 |
| N/A | 04031619, E08-06MP, C12212810-0806, 208-1J-106, M12810-08-06, 410008-131280 |
| NAPA | G25100-0806 |
| Parker | 10143-06-08, 10143-6-8, 101HY-6-8, 10156-6-8 |
| Weatherhead | 08E106, 08EE106, 08U106, 08Z106, 26508P106, 33808P106, 8E106, 3903-08106, 33808P-106, 26508P-106, 08E-106, 08U-106, 08W-106 |
