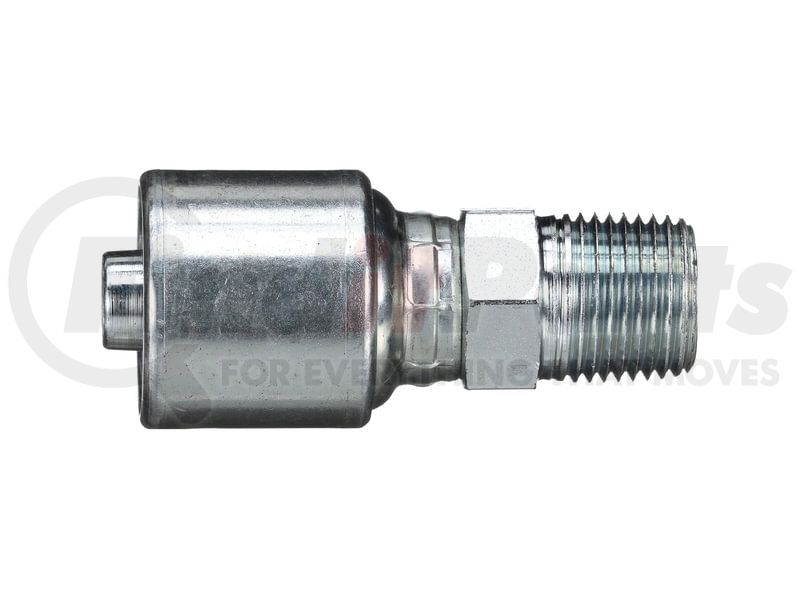

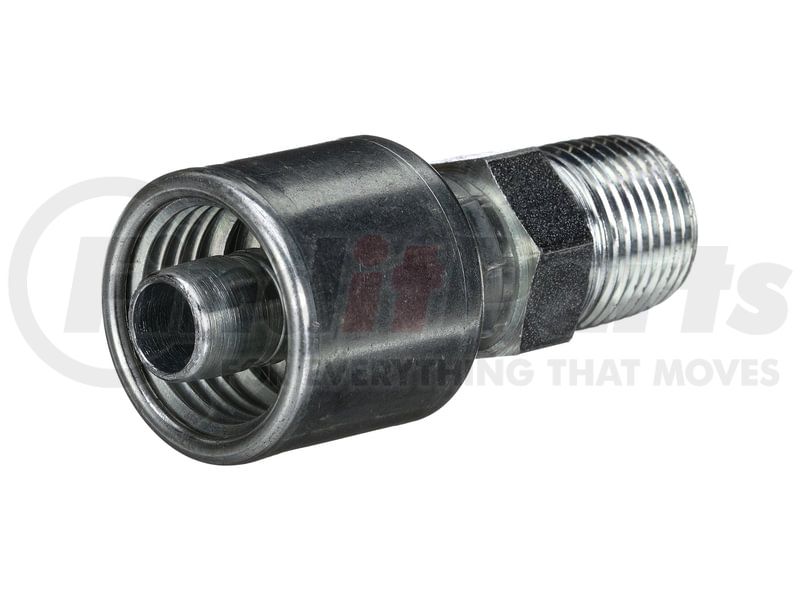

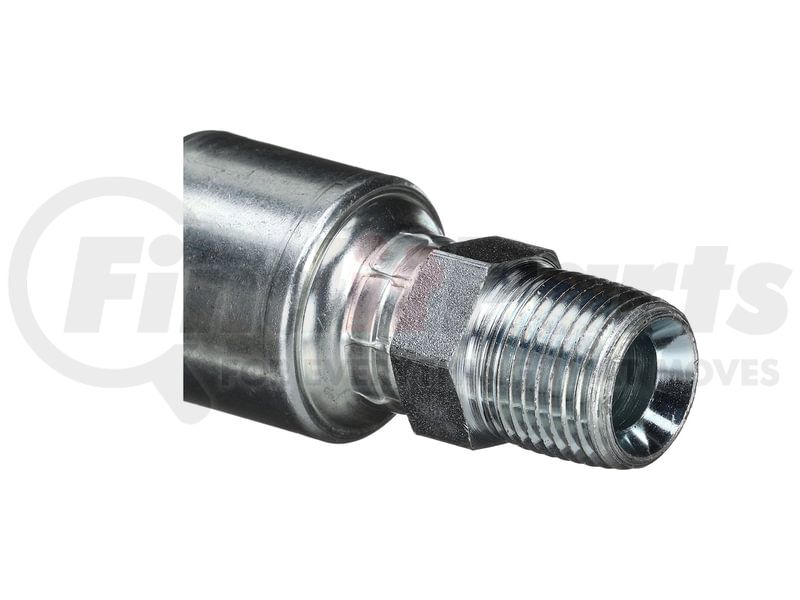

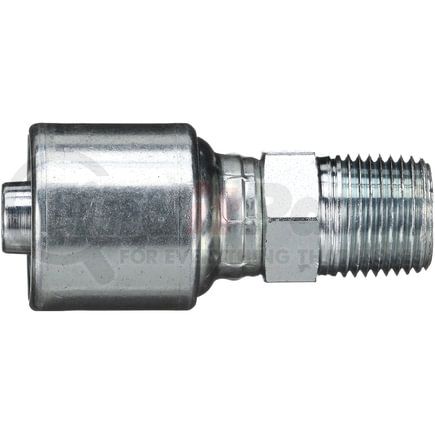

(888) 312-8812 Login SignupGATES G25100-0604 6G-4MP
Tap to view 3 more
$1399
Limited availability at this price!
In Stock
Get as soon as Monday, Oct 5
GATES G25100-0604 Part Description
Manufacturer
Product Description
Male Pipe (NPTF - 30 Cone Seat) (MegaCrimp)
Features & Benefits
- Robust "bite-the-wire" crimp
- Robust “bite-the-wire” crimp
- Tested to an industry-leading 1 million impulse cycles
- Simplifies inventory management
- Environmentally-friendly TuffCoat plating for 347 percent better corrosion resistance SAE Standard
- Popular thread styles also available with TuffCoat Xtreme plating for 583 percent better corrosion resistance than the SAE standard

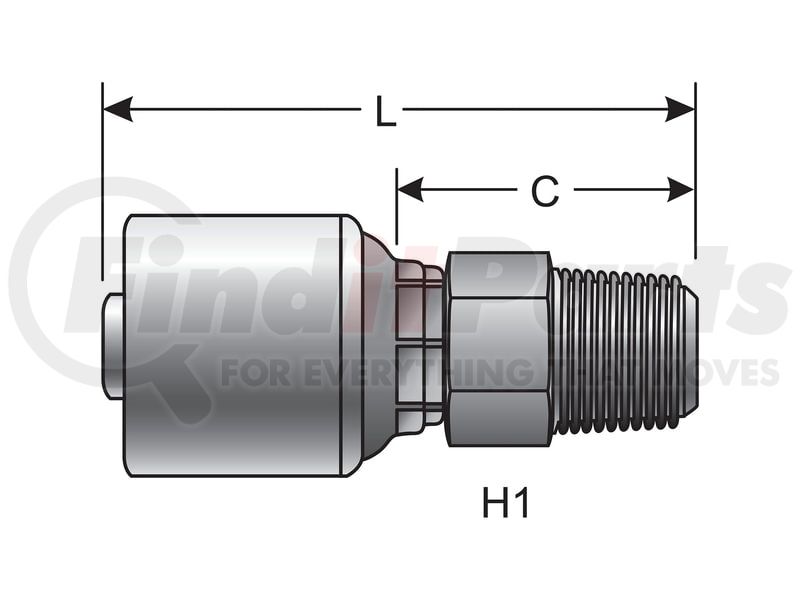

GATES G25100-0604 Specifications
Product Attributes
| Coupling Description | MegaCrimp Male Pipe (NPTF - 30 Cone Seat) |
| Industrial Description | 6G-4MP |
| Thread Size | 1/4-18 |
| Inside Diameter | .375 IN |
| Hydraulic Hose Recommendation | Can Accommodate Various Hose Outside Diameters on Both One-Wire & Two-Wire Braid Hydraulic Hose |
| Stem Hex Size | .625 IN |
| Cut-Off Length | 1.22 IN |
| Length | 2.32 IN |
| Seal Type | Thread Interference/Mated Angle |
| Nose Seat Type | Inverted |
| Thread Angle | 60 |
| Mating Angle | 30 |
| Gender | Male |
| Bent Tube Angle | Straight |
| Swivel | No |
| Inside Diameter | 9.5 MM |
| Cut-Off Length | 31.1 MM |
| Length | 58.9 MM |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8412909015 |
| Country of Origin (Primary) | US |
| Stock Status | S |
| UPC | 00072053322620 |
| VMRS Code | 059032012 |
| UNSPSC | 31163000 |
GATES G25100-0604 Cross References
| Brand | Part Number |
|---|---|
| Aeroquip | 1AA4MP6, FJ9121-0406S |
| Caterpillar | 124-1896, 5P-5496 |
| Dayco | 100881, 108245, 151245, HY06-04MP, DC06-04MP |
| Eaton | 06E-104, 06Z-104 |
| Goodyear | 13615-0604, 14615-0604, B2-NPM-0604, T8-NPM-0604 |
| Kurt Hydraulics | MP-6-4 |
| N/A | 04031650, KMP0604, E06-04MP, C12212810-0604, 206-1J-104, M12810-06-04, 410004-131280 |
| NAPA | G25100-0604 |
| Parker | 10143-04-06, 10143-4-6, 101HY-4-6, 10156-4-6 |
| Weatherhead | 06E104, 06EE104, 06U104, 06Z104, 26506P104, 33606E-104, 33806P104, 6E104, 26506P-104, 3903-06104, 33806P-104, 06U-104, 06W-104 |
