(888) 312-8812 Login SignupGATES G20831-2020 Female British Std Parallel Pipe O-Ring Swivel-45 Bent Tube (GlobalSpiral)
Tap to view 2 more
$26099
Limited availability at this price!
In Stock
Get it by Friday, Aug 28
GATES G20831-2020 Part Description
Manufacturer
Product Description

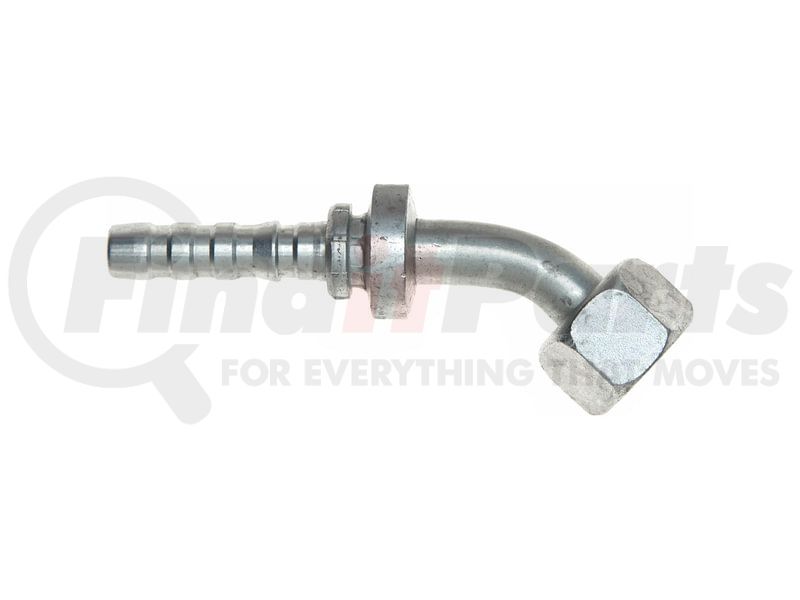

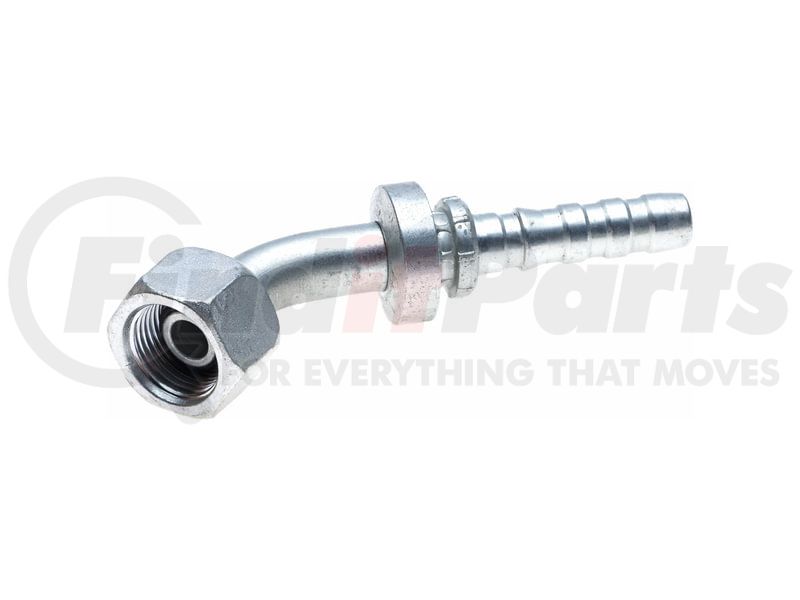

Female British Std Parallel Pipe O-Ring Swivel-45 Bent Tube (GlobalSpiral)
Features & Benefits
- "Bite-the-wire" crimp for improved coupling retention
- “Bite-the-wire” crimp for improved coupling retention
- Tested to an industry-leading 1,000,000 impulse cycles
- +250degF temperature capability for longer assembly life
- +250°F temperature capability for longer assembly life
- +250?F temperature capability for longer assembly life
- +250˚F temperature capability for longer assembly life
- Environmentally-friendly TuffCoat plating for 347 percent better corrosion resistance than the SAE Standard
GATES G20831-2020 Specifications
Product Attributes

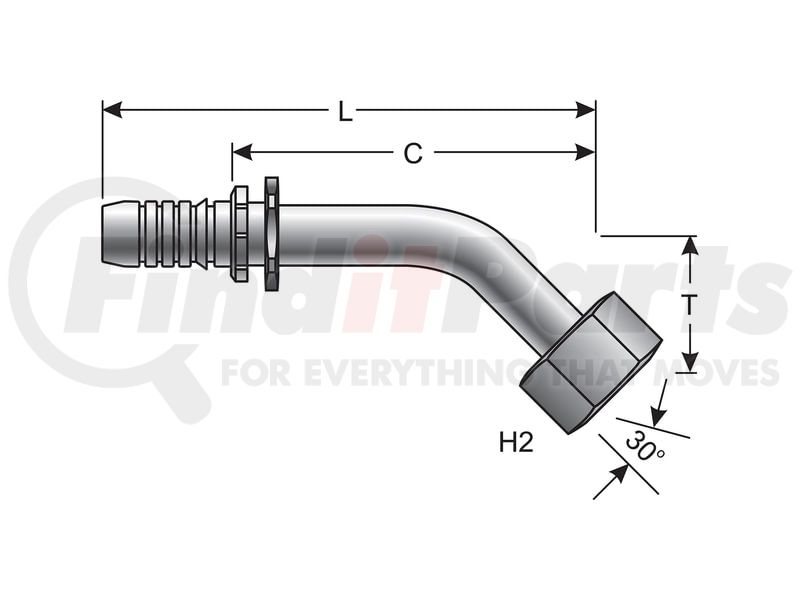

| Inside Diameter | 1.25 IN |
| Hydraulic Hose Recommendation | All Gates MegaSys Four and Six-Spiral Wire Hydraulic Hose Up to 8,000 psi |
| Nut Hex Size | 50 MM |
| Drop Length | 1.48 IN |
| Cut-Off Length | 4.72 IN |
| Length | 7.52 IN |
| Coupling Description | GlobalSpiral Female British Standard Parallel Pipe O-Ring Swivel - 45 Bent Tube |
| Industrial Description | 20GS-20FBSPORX45 |
| Thread Size | 1 1/4-11 |
| Inside Diameter | 31.8 MM |
| Drop Length | 37.6 MM |
| Cut-Off Length | 119.9 MM |
| Length | 191 MM |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8412909015 |
| Country of Origin (Primary) | US |
| Stock Status | N |
| UPC | 00072053510515 |
| VMRS Code | 059032012 |
| UNSPSC | 31163000 |
GATES G20831-2020 Cross References
| Brand | Part Number |
|---|---|
| Goodyear | 28115-2020, DG-BPFX45-2020, S4-BPFX45-2020 |
| NAPA | G20831-2020 |
| Weatherhead | 4SP20W60P |
