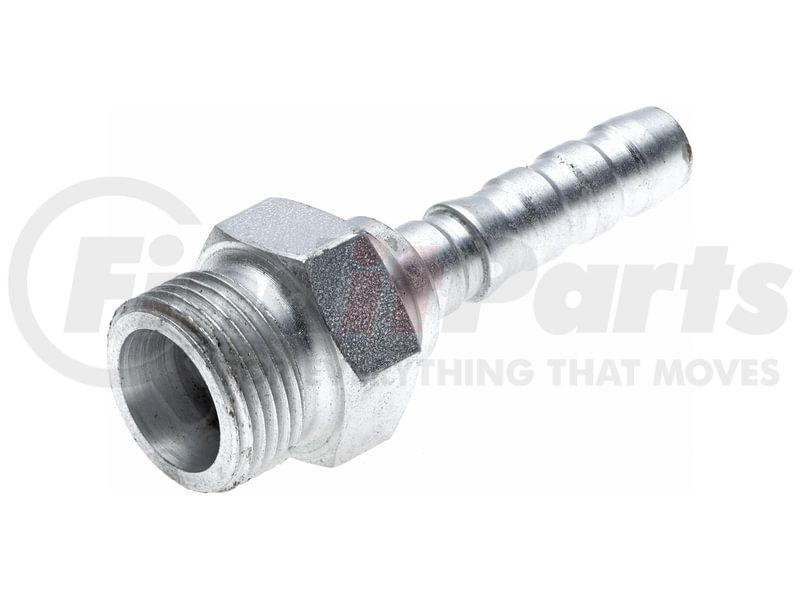

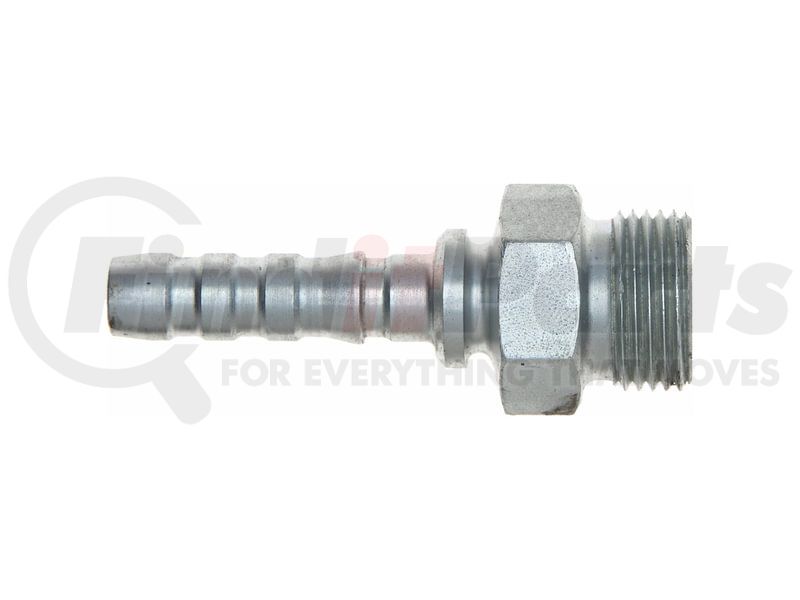

Gates G20715-0816 - Male DIN 24 Cone - Heavy Series (GlobalSpiral)
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
Sometimes we may have similar parts for sale, click the button below to see if anything matches.
GATES part description
Product Description
Male DIN 24 Cone - Heavy Series (GlobalSpiral)
Features & Benefits
- "Bite-the-wire" crimp for improved coupling retention
- “Bite-the-wire” crimp for improved coupling retention
- Tested to an industry-leading 1,000,000 impulse cycles
- +250 Deg. F temperature capability for longer assembly life
- Environmentally-friendly TuffCoat plating for 347 percent better corrosion resistance than the SAE Standard
Product Attributes

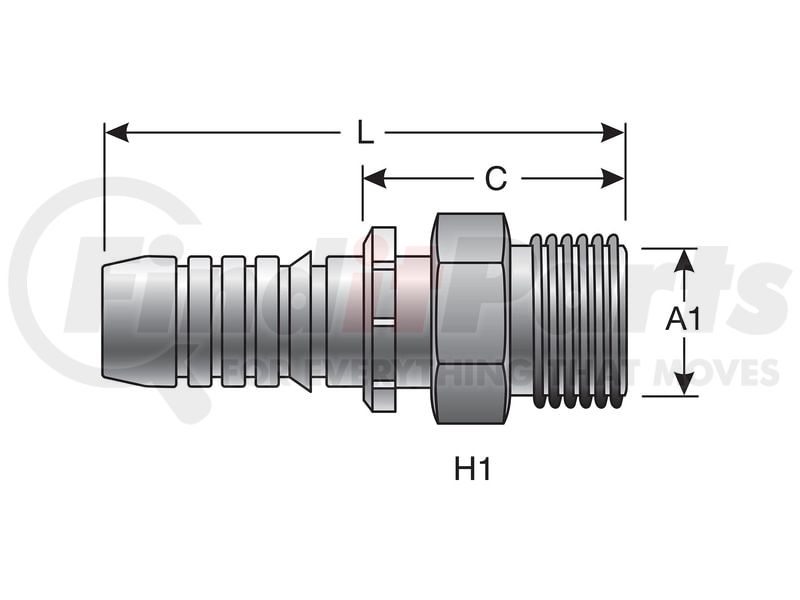

| Coupling Description | GlobalSpiral Male DIN 24 Cone - Heavy Series |
| Industrial Description | 8GS-16MDH |
| Thread Size | M24X1.5 |
| Inside Diameter | .5 IN |
| Hydraulic Hose Recommendation | All Gates MegaSys Four and Six-Spiral Wire Hydraulic Hose Up to 8,000 psi |
| Outside Diameter | 16 MM |
| Stem Hex Size | 27 MM |
| Cut-Off Length | 1.18 IN |
| Length | 1.17 IN |
| Inside Diameter | 12.7 MM |
| Cut-Off Length | 30 MM |
| Length | 29.7 MM |
Additional Information
| Harmonized Tariff Code (Schedule B) | 7326908688 |
| Country of Origin (Primary) | US |
| UPC | 00072053497373 |
| VMRS Code | 059032012 |
| UNSPSC | 31163000 |
Part Interchanges
