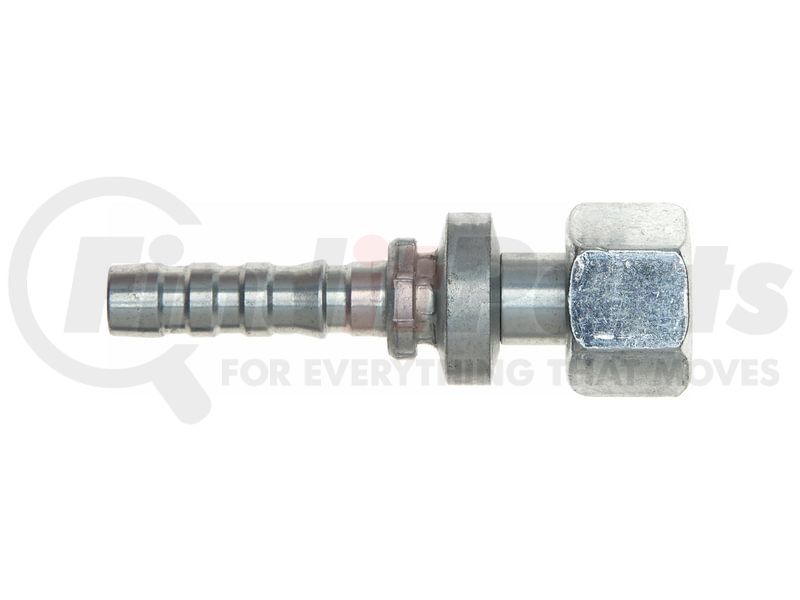

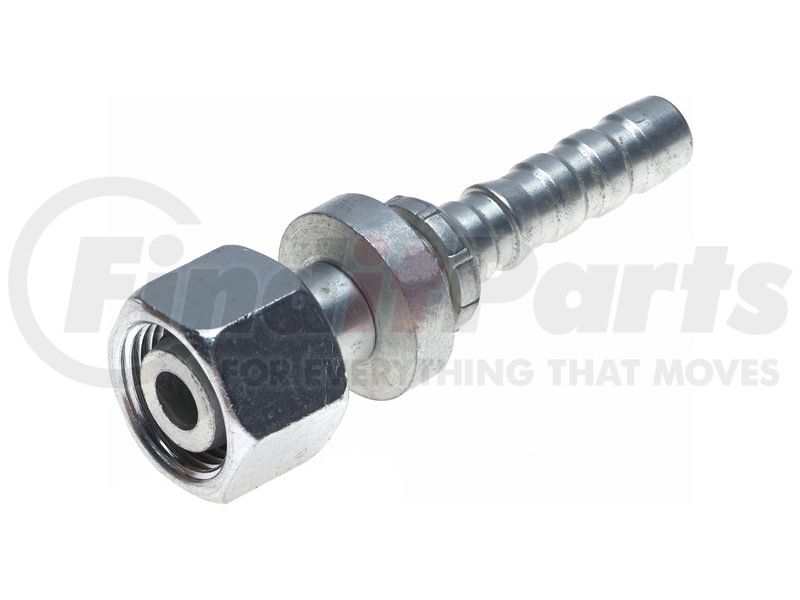

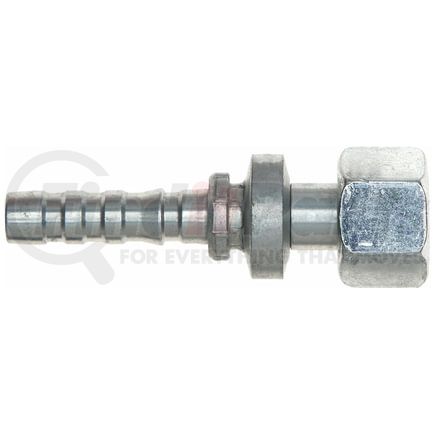

GATES G20645-0612 - Female DIN 24 Cone Swivel - Light Series with O-Ring (GlobalSpiral)
$3449
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
GATES part description
California Proposition 65 Warning
California Proposition 65 Warning
WARNING: This product can expose you to chemical which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov. (Read more)
Product Description
Female DIN 24 Cone Swivel - Light Series with O-Ring (GlobalSpiral)
Features & Benefits
- "Bite-the-wire" crimp for improved coupling retention
- Tested to an industry-leading 1,000,000 impulse cycles
- +250degF temperature capability for longer assembly life
- Environmentally-friendly TuffCoat plating for 347 percent better corrosion resistance than the SAE Standard

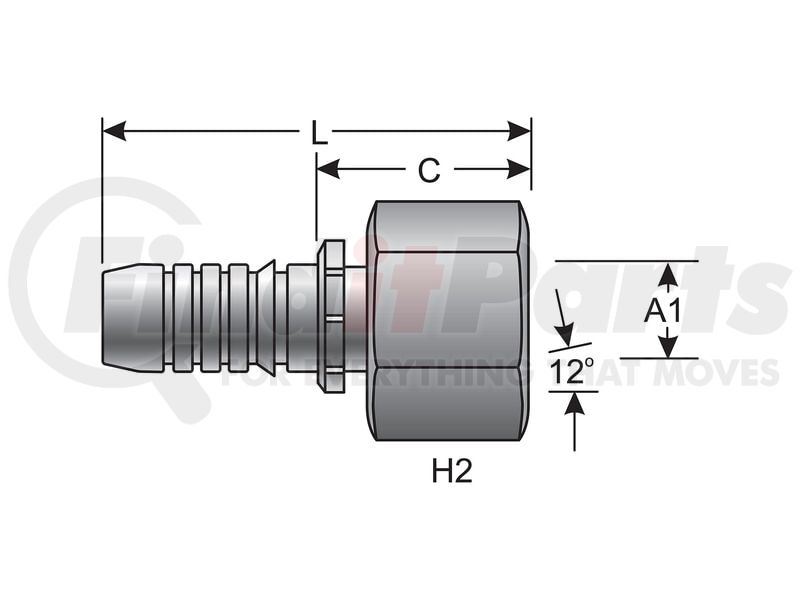

Product Attributes
| Coupling Description | GlobalSpiral Female DIN 24 Cone Swivel - Light Series w/ O-Ring |
| Industrial Description | 6GS-12FDLORX |
| Thread Size | M18X1.5 |
| Inside Diameter | .375 IN |
| 9952 | All Gates MegaSys Four and Six-Spiral Wire Hydraulic Hose Up to 8,000 psi |
| Outside Diameter | 12 MM |
| 9923 | 22 MM |
| 9929 | 1.46 IN |
| Length | 2.87 IN |
Additional Information
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (Schedule B) | 7326908688 |
| UPC | 00072053474909 |
| VMRS Code | 059032012 |
| UNSPSC | 31163000 |
