GATES G20357-2020 Part Description
Manufacturer
Product Description

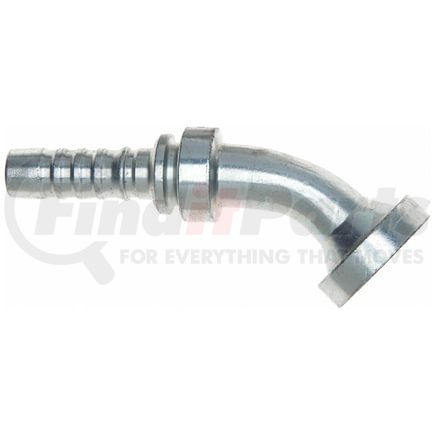

Code 62 O-Ring Flange Heavy - 45 Bent Tube (GlobalSpiral)
Features & Benefits
- "Bite-the-wire" crimp for improved coupling retention
- “Bite-the-wire” crimp for improved coupling retention
- Tested to an industry-leading 1,000,000 impulse cycles
- +250degF temperature capability for longer assembly life
- +250°F temperature capability for longer assembly life
- +250?F temperature capability for longer assembly life
- +250˚F temperature capability for longer assembly life
- Environmentally-friendly TuffCoat plating for 347 percent better corrosion resistance than the SAE Standard
GATES G20357-2020 Specifications
Product Attributes
| Coupling Description | GlobalSpiral Code 62 O-Ring Flange Heavy - 45 Bent Tube |
| Industrial Description | 20GS-20FLH45M |
| Inside Diameter | 1.25 IN |
| Hydraulic Hose Recommendation | All Gates MegaSys Four and Six-Spiral Wire Hydraulic Hose Up to 8,000 psi |
| Maximum Working Pressure | 6000 PS |
| Flange Thickness | .41 in |
| Flange Diameter | 2.13 IN |
| Drop Length | 1.5 IN |
| Cut-Off Length | 4.13 IN |
| Length | 6.93 IN |
| Inside Diameter | 31.8 MM |
| Flange Thickness | 10.4 MM |
| Flange Diameter | 54.1 MM |
| Drop Length | 38.1 MM |
| Cut-Off Length | 104.9 MM |
| Length | 176 MM |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8412909015 |
| Country of Origin (Primary) | US |
| Stock Status | S |
| UPC | 00072053442632 |
| VMRS Code | 059032012 |
| UNSPSC | 31163000 |
GATES G20357-2020 Cross References
| Brand | Part Number |
|---|---|
| Aeroquip | 1E20FHA20, 1Z20FHA20, 1W20FHA20, 6S20FHA20, 4S20FHA20 |
| Dayco | 100509, 100509U, 102227, 1B20FHA20 |
| Goodyear | 28310-2020, DG-FH45-2020, S4-FH45-2020, S6-FH45-2020 |
| N/A | 04031077, N20-20FLH45, 4043-2020, 620-1W62-G50, M23641-20-20, M83641-20-20, 6043-2020 |
| NAPA | G20357-2020 |
| Parker | 16F71-20-20, 16F73-20-20, 16F78-20-20, 16F79-20-20, 16F77-20-20 |
| Weatherhead | 43020ED50, 43020UD50, 47020ED54, 47020EED54, 4SP20WD54, 57020SD50, 6SP20WD50, 43020U-D50, 43020E-D50 |
