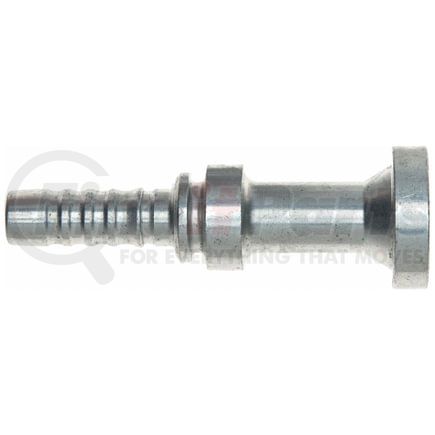

Gates G20350-1616 - 16GS 16FLH
$7849
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
GATES part description
Product Description
Code 62 O-Ring Flange Heavy (GlobalSpiral)
Features & Benefits
- "Bite-the-wire" crimp for improved coupling retention
- “Bite-the-wire” crimp for improved coupling retention
- Tested to an industry-leading 1,000,000 impulse cycles
- +250degF temperature capability for longer assembly life
- +250°F temperature capability for longer assembly life
- Environmentally-friendly TuffCoat plating for 347 percent better corrosion resistance than the SAE Standard
Product Attributes
| Coupling Description | GlobalSpiral Code 62 O-Ring Flange Heavy |
| Industrial Description | 16GS-16FLH |
| Inside Diameter | 1 IN |
| Hydraulic Hose Recommendation | All Gates MegaSys Four and Six-Spiral Wire Hydraulic Hose Up to 8,000 psi |
| Maximum Working Pressure | 6000 PS |
| Flange Thickness | .38 in |
| Flange Diameter | 1.88 IN |
| Cut-Off Length | 2.7 IN |
| Length | 4.92 IN |
| Inside Diameter | 25.4 MM |
| Flange Thickness | 9.7 MM |
| Flange Diameter | 47.8 MM |
| Cut-Off Length | 68.6 MM |
| Length | 125 MM |
Additional Information
| Harmonized Tariff Code (Schedule B) | 7326908688 |
| Country of Origin (Primary) | US |
| UPC | 00072053297362 |
| VMRS Code | 059032012 |
| UNSPSC | 31163000 |
Part Interchanges
- Aeroquip 1B16FH16
- Aeroquip 1E16FH16
- Aeroquip 1Z16FH16
- Aeroquip FJ7261-1616S
- Parker 16A71-16-16
- Parker 16A73-16-16
- Parker 16A78-16-16
- Parker 16A79-16-16
- Dayco 100385
- Dayco 100385U
- Dayco 102194
- Dayco 1B16FH16
- Dayco FJ9784-1615S
- Weatherhead 43016ED16
- Weatherhead 43016UD16
- Weatherhead 47016ED16
- Weatherhead 47016EED16
- Weatherhead 4SP16WD16
- Weatherhead 57016SD16
- Goodyear 14300-1616
- Goodyear 28300-1616
- Goodyear 30300-1616
- Goodyear B2-FH-1616
- Goodyear DG-FH-1616
- Goodyear S4-FH-1616
- Goodyear S4-FH90-1616
- Goodyear S6-FH-1616
- NAPA G20350-1616
- Kurt Hydraulics C62-16-16-W
- Kurt Hydraulics C62-16-16-WHP
