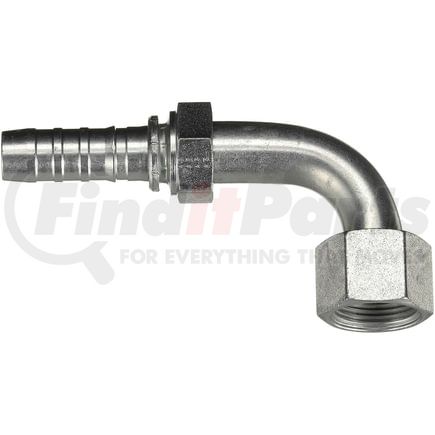

GATES G20239-1210 Female Flat-Face O-Ring Swivel - 90 Bent Tube (GlobalSpiral)

★★★★★ (0)
Gates G20239-1210 Hydraulic Coupling / Adapter Female Flat-Face O-Ring Swivel - 90 Bent Tube (GlobalSpiral)
GATES
Tap to view 3 more

$159.99

Limited availability at this price!

In Stock

Get as soon as Tuesday, Nov 24
30-day Return Policy On eligible items Details
Free Ground shipping on orders over $499 details

GATES G20239-1210 Part Description

Manufacturer

GATES

Product Description

Female Flat-Face O-Ring Swivel - 90 Bent Tube (GlobalSpiral)

Features & Benefits

  • "Bite-the-wire" crimp for improved coupling retention
  • “Bite-the-wire” crimp for improved coupling retention
  • Tested to an industry-leading 1,000,000 impulse cycles
  • +250degF temperature capability for longer assembly life
  • +250°F temperature capability for longer assembly life
  • +250?F temperature capability for longer assembly life
  • +250˚F temperature capability for longer assembly life
  • Environmentally-friendly TuffCoat plating for 347 percent better corrosion resistance than the SAE Standard

GATES G20239-1210 Specifications

Product Attributes

Coupling DescriptionGlobalSpiral Female Flat-Face O-Ring Swivel - 90 Bent Tube
Industrial Description12GS-10FFORX90S
Thread Size1-14
Inside Diameter.75 IN
Hydraulic Hose RecommendationAll Gates MegaSys Four and Six-Spiral Wire Hydraulic Hose Up to 8,000 psi
Nut Hex Size30 MM
Drop Length1.26 IN
Cut-Off Length2.36 IN
Length4.37 IN
Inside Diameter19.1 MM
Drop Length32 MM
Cut-Off Length60 MM
Length111 MM

Additional Information

Harmonized Tariff Code (Schedule B)8412909015
Country of Origin (Primary)US
Stock StatusS
UPC00072053399301
VMRS Code059032012
UNSPSC31163000

GATES G20239-1210 Cross References

BrandPart Number
Aeroquip4SA10FRB12
Dayco101416
Goodyear28725-1210, 29725-1210, S4-OFFX90S-1210
N/A04030864, 4009-1012
NAPAG20239-1210
Parker1J971-10-12
Weatherhead43012EA30, 43012UA30, 43012U-A30, 43012E-A30
