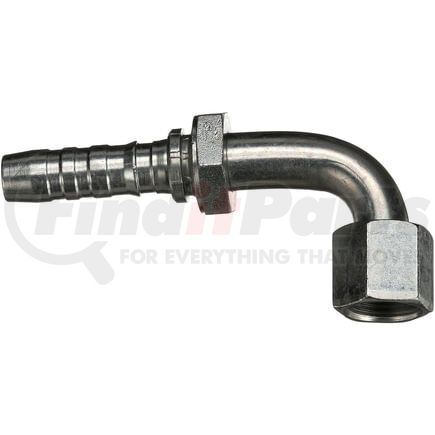

(888) 312-8812 Login SignupGATES G20179-2020 Female JIC 37 Flare Swivel - 90 Bent Tube (GlobalSpiral)
Tap to view 3 more
$16399
Limited availability at this price!
In Stock
Get it by Thursday, Jul 23
GATES G20179-2020 Part Description
Manufacturer
Product Description
Female JIC 37 Flare Swivel - 90 Bent Tube (GlobalSpiral)
Features & Benefits
- "Bite-the-wire" crimp for improved coupling retention
- “Bite-the-wire” crimp for improved coupling retention
- Tested to an industry-leading 1,000,000 impulse cycles
- +250 Deg. F temperature capability for longer assembly life
- Environmentally-friendly TuffCoat plating for 347 percent better corrosion resistance than the SAE Standard
GATES G20179-2020 Specifications
Product Attributes
| Coupling Description | GlobalSpiral Female JIC 37 Flare Swivel - 90 Bent Tube |
| Industrial Description | 20GS-20FJX90S |
| Thread Size | 1 5/8-12 |
| Inside Diameter | 1.25 IN |
| Hydraulic Hose Recommendation | All Gates MegaSys Four and Six-Spiral Wire Hydraulic Hose Up to 8,000 psi |
| Nut Hex Size | 2 IN |
| Drop Length | 2.52 IN |
| Cut-Off Length | 4.05 IN |
| Length | 6.85 IN |
| Inside Diameter | 31.8 MM |
| Drop Length | 64 MM |
| Cut-Off Length | 102.9 MM |
| Length | 174 MM |
Additional Information
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (Schedule B) | 8412909015 |
| Stock Status | S |
| UPC | 00072053437485 |
| VMRS Code | 059032012 |
| UNSPSC | 31163000 |
GATES G20179-2020 Cross References
| Brand | Part Number |
|---|---|
| Aeroquip | 1BA20FJB20, 1ZA20FJB20 |
| Caterpillar | 155-2838 |
| Goodyear | S6-JCFX90-2020 |
| N/A | 04030763, 4004-2020, M82592-16-16, 6004-2020, M82592-20-20 |
| NAPA | G20179-2020 |
| Parker | 13971-20-20, 13977-20-20 |
