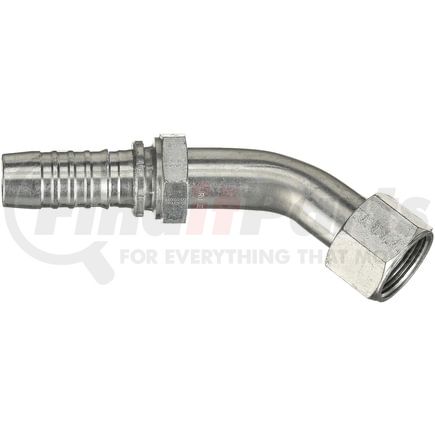

(888) 312-8812 Login SignupGATES G20175-1616 Female JIC 37 Flare Swivel - 45 Bent Tube (GlobalSpiral)
Tap to view 3 more
$13399
Limited availability at this price!
In Stock
Get it by Tuesday, Jul 21
GATES G20175-1616 Part Description
Manufacturer
Product Description
Female JIC 37 Flare Swivel - 45 Bent Tube (GlobalSpiral)
Features & Benefits
- "Bite-the-wire" crimp for improved coupling retention
- “Bite-the-wire” crimp for improved coupling retention
- Tested to an industry-leading 1,000,000 impulse cycles
- +250 Deg. F temperature capability for longer assembly life
- Environmentally-friendly TuffCoat plating for 347 percent better corrosion resistance than the SAE Standard
GATES G20175-1616 Specifications
Product Attributes
| Coupling Description | GlobalSpiral Female JIC 37 Flare Swivel - 45 Bent Tube |
| Industrial Description | 16GS-16FJX45M |
| Thread Size | 1 5/16-12 |
| Inside Diameter | 1 IN |
| Hydraulic Hose Recommendation | All Gates MegaSys Four and Six-Spiral Wire Hydraulic Hose Up to 8,000 psi |
| Nut Hex Size | 1.5 IN |
| Drop Length | 1.5 IN |
| Cut-Off Length | 4.08 IN |
| Length | 6.3 IN |
| Inside Diameter | 25.4 MM |
| Drop Length | 38.1 MM |
| Cut-Off Length | 103.6 MM |
| Length | 160 MM |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8412909015 |
| Country of Origin (Primary) | US |
| Stock Status | S |
| UPC | 00072053296969 |
| VMRS Code | 059032012 |
| UNSPSC | 31163000 |
GATES G20175-1616 Cross References
| Brand | Part Number |
|---|---|
| Aeroquip | 4SA16FJA16 |
| Goodyear | 29420-1616 |
| N/A | 04030746, N16-16FJ45 |
| NAPA | G20175-1616 |
| Weatherhead | 43016E696, 4SP20W697 |
