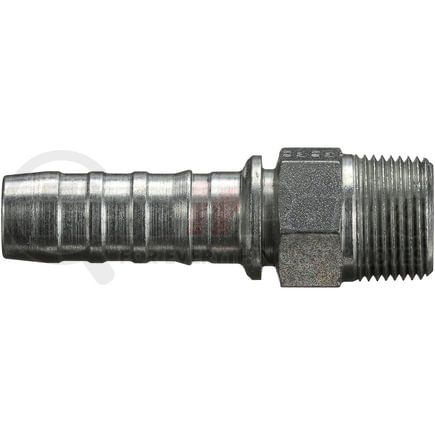

GATES G20100-2020 Part Description
Manufacturer
Product Description
Male Pipe (NPTF - 30 Cone Seat) (GlobalSpiral)
Features & Benefits
- "Bite-the-wire" crimp for improved coupling retention
- “Bite-the-wire” crimp for improved coupling retention
- Tested to an industry-leading 1,000,000 impulse cycles
- +250 Deg. F temperature capability for longer assembly life
- Environmentally-friendly TuffCoat plating for 347 percent better corrosion resistance than the SAE Standard
GATES G20100-2020 Specifications
Product Attributes
| Coupling Description | GlobalSpiral Male Pipe (NPTF - 30 Cone Seat) |
| Industrial Description | 20GS-20MP |
| Thread Size | 1 1/4-11 1/2 |
| Inside Diameter | 1.25 IN |
| Hydraulic Hose Recommendation | All Gates MegaSys Four and Six-Spiral Wire Hydraulic Hose Up to 8,000 psi |
| Stem Hex Size | 1.75 IN |
| Cut-Off Length | 2.2 IN |
| Length | 5 IN |
| Inside Diameter | 31.8 MM |
| Cut-Off Length | 55.9 MM |
| Length | 127 MM |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8412909015 |
| Country of Origin (Primary) | US |
| Stock Status | S |
| UPC | 00072053437300 |
| VMRS Code | 059032012 |
| UNSPSC | 31163000 |
GATES G20100-2020 Cross References
| Brand | Part Number |
|---|---|
| Aeroquip | 1BA20MP20, 6SA20MP20, 4SA20MP20 |
| Caterpillar | 221-0571, 2P-0922 |
| Continental Belt | SG-NPM-2020 |
| Dayco | 102047, 103002, 1BA20MP20 |
| Goodyear | 28615-2020, 28655-2020, 36615-2020, DG-NPM-2020, S4-NPM-2020 |
| Kurt Hydraulics | MP-20-20-JJ, MP-20-20-W |
| N/A | T7090-2016, 04030641, N20-20MJ, C12412810-2020, 4020-2020, 620-1W-120, 6020-2020, N20-20MP, T7090-2020 |
| NAPA | G20100-2020 |
| Parker | 10171-20-20, 10178-20-20, 10177-20-20, 10173-20-20 |
| Weatherhead | 43020E124, 43020U120, 47020E124, 4SP20W120, 6SP20W120, 43020E-120, 4702E120, 43020E-124, 4302E120, 43020U-120, 47020E-120 |
