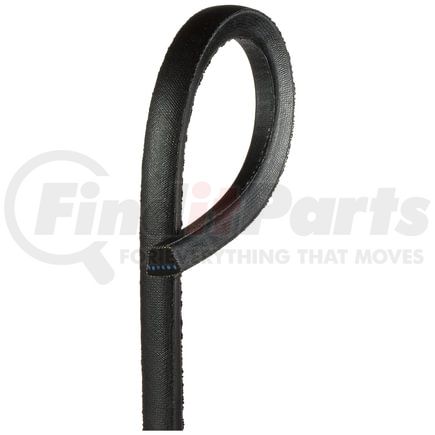

GATES B77 Part Description
Manufacturer
Product Description
Hi-Power II Classical Section Wrapped V-Belt
Application Summary
John Deere, 9400 Combine, John Deere 6-Cyl. 414 Diesel, Straw Spreader
Features & Benefits
- Smoother running with less slip and wear for excellent belt service life and reduced pulley wear
- High-quality rubber compound protects the belt against heat, ozone and sunlight
- Proprietary Flex-Weave cover is a patented fabric construction, providing extended protection to the belt core from oil, contaminants and heat for longer belt life
- Flex-bonded cords strongly adhere to the body of the belt, resulting in equal load distribution and absorption of bending stress, fatigue and shock loads without cord deterioration
- Meets RMA oil and heat resistant standards and static conductivity requirements
- Temperature Range: -22 Deg. F to +140 Deg. F (-30 Deg. C to +60 Deg. C)
- NOTE: Available in A, B, C, D and E cross-sections as well as Hi-Power II PowerBand V-belts
GATES B77 Specifications
Product Attributes
| Type | Classical Section Wrapped V-Belt |
| Cross Section Designation | B |
| Strand Quantity | 1 |
| Top Width | .66 in |
| Outside Circumference | 80 in |
| Construction | Wrapped |
| Notched | No |
| Belt Material | EPDM |
| Cord Material | Polyester |
| Top Width | 17 mm |
| Outside Circumference | 2032 mm |
Additional Information
| Country of Origin (Primary) | MX |
| Harmonized Tariff Code (Schedule B) | 4010343000 |
| Stock Status | S |
| UPC | 00072053019629 |
| VMRS Code | 065005003 |
| UNSPSC | 26111801 |
GATES B77 Cross References
| Brand | Part Number |
|---|---|
| 90036077 | |
| <Unknown> | 5H59829A77, 5H59831A77, 8770 |
| ACDelco | IB77 |
| Browning Manufacturing | B77 |
| Bush Hog | 4725I3022, 4725I30222 |
| CARQUEST | B77 |
| CONTINENTAL AG | B77 |
| Clay Equip | 03480 |
| Dayco | BP77 |
| Demco | 6A160 |
| Deutz-allis | 71329499 |
| GOODYEAR BELTS | B77 |
| Gehl | H7850 |
| Goodyear | 77077, B77 |
| Grainger | 6A160 |
| Hesston | 056036 |
| International Harvester (IHC) | 221119X1, 668902R1 |
| John Deere | N192750X, Z33774 |
| Massey Ferguson | 676448M1, GN5101 |
| Metric | 16C2030 |
| N/A | 41010662, B77, RB77 |
| NAPA | B77 |
| NAPA Belts/Hose | B77 |
| PIX | A-B77 |
| Panzer | 74212 |
| Quality | 170448081 |
| Reliance Electric | 107295 |
| Roper | 3100H |
| Timken | B77 |
| United Farm Tools | 3955, UFT3955 |
| White | 104617, 401397D, H668902R1 |
