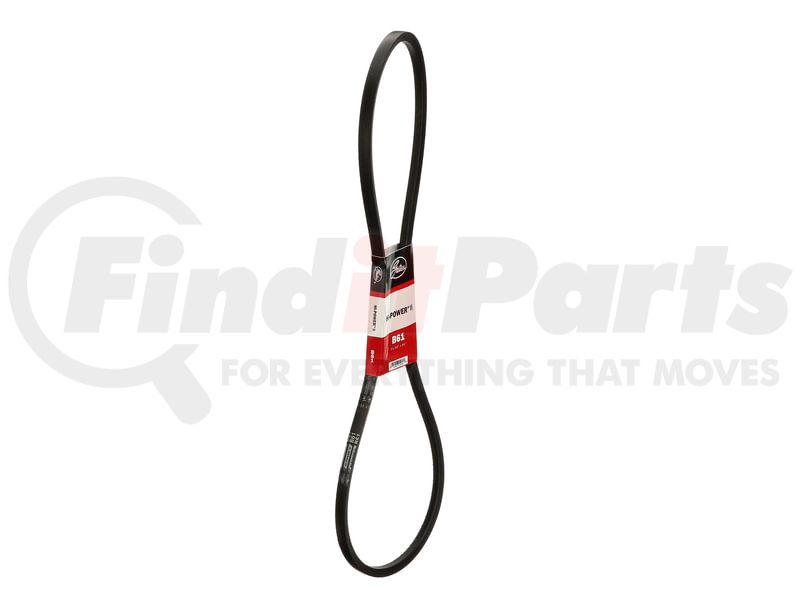

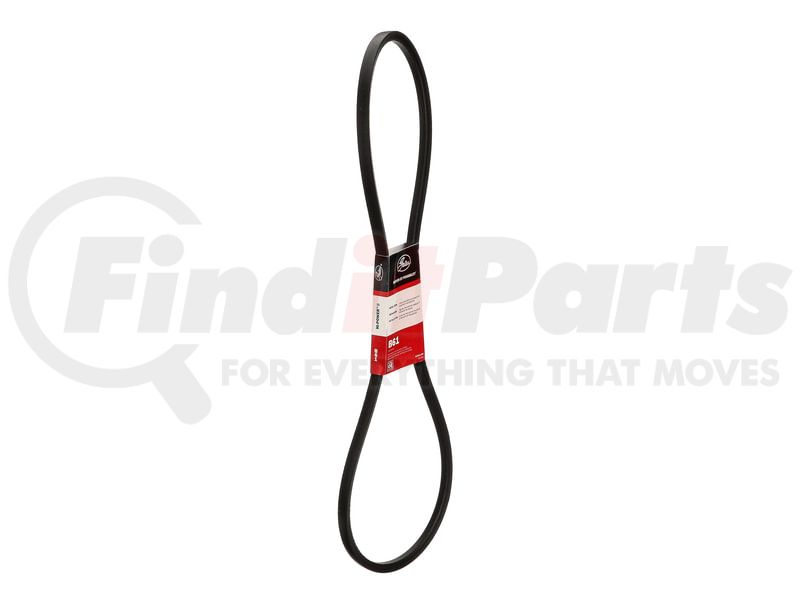

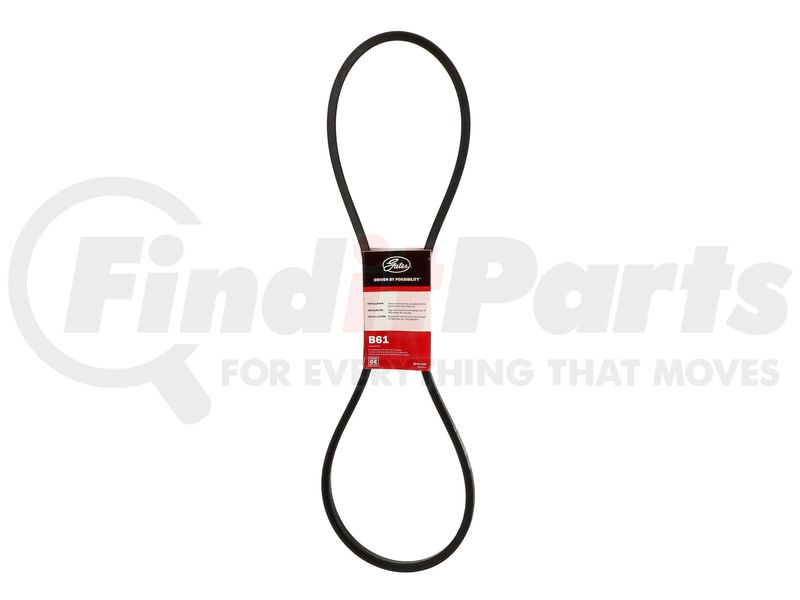

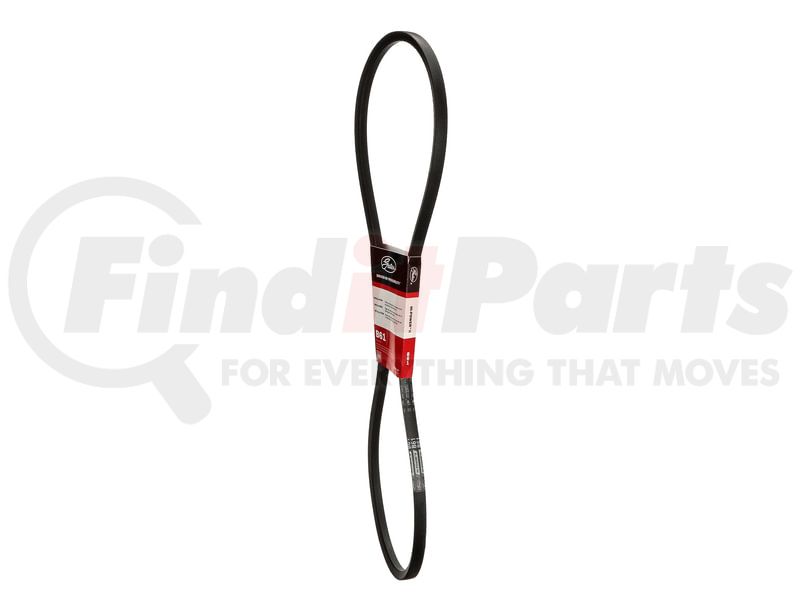

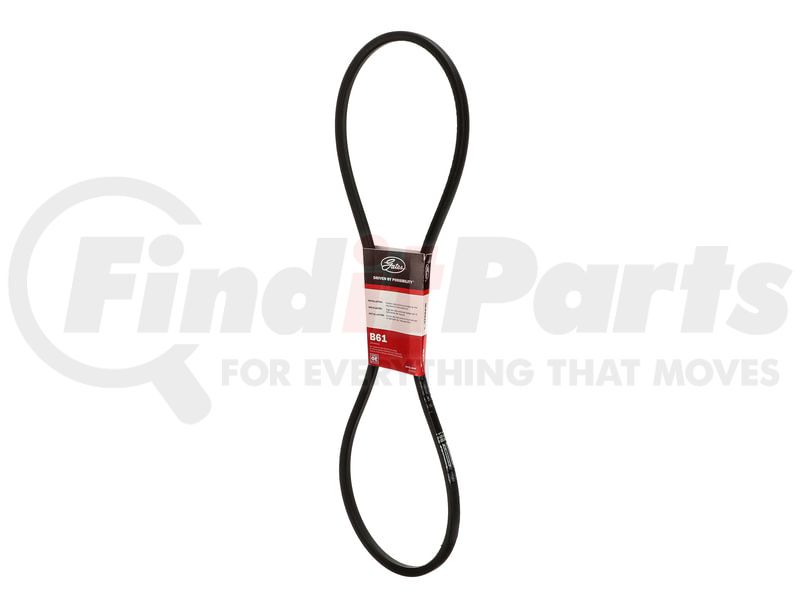

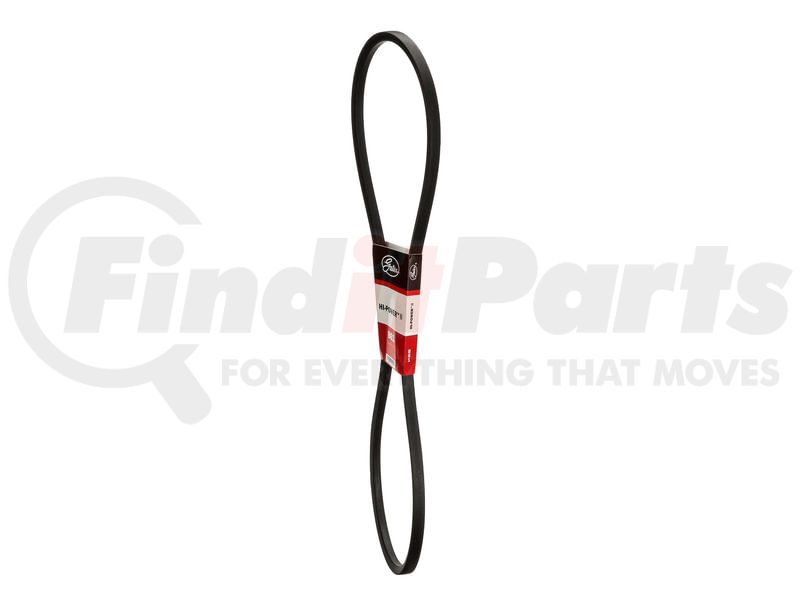

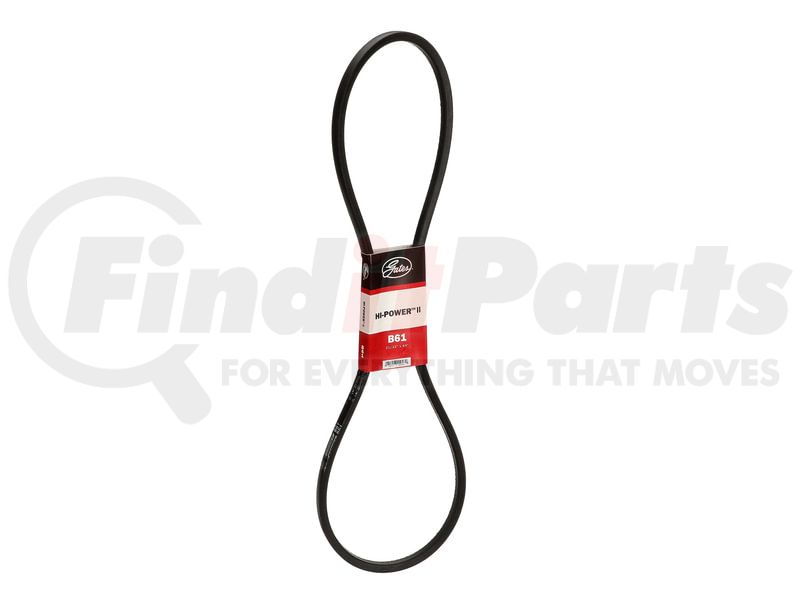

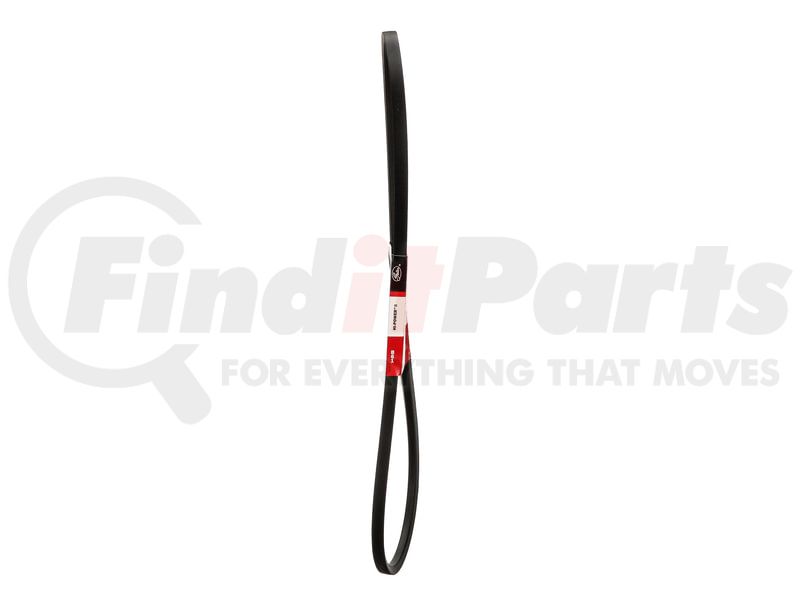

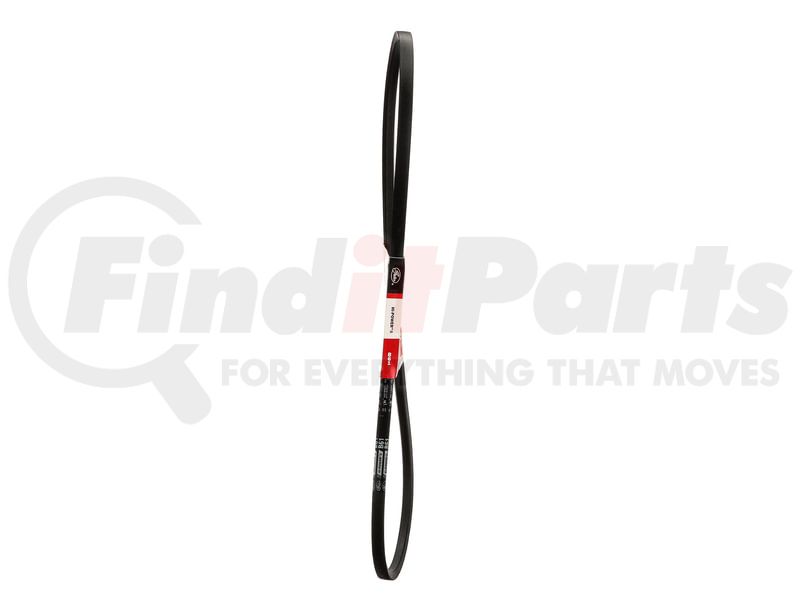

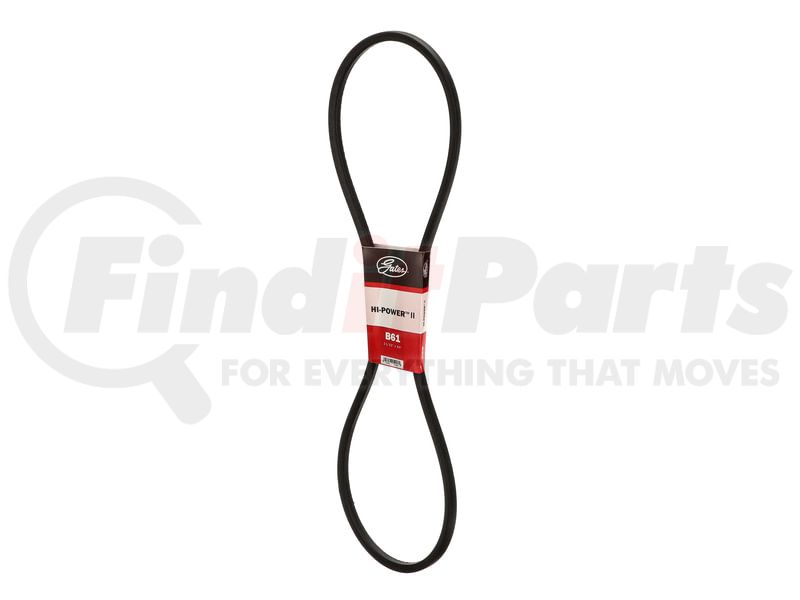

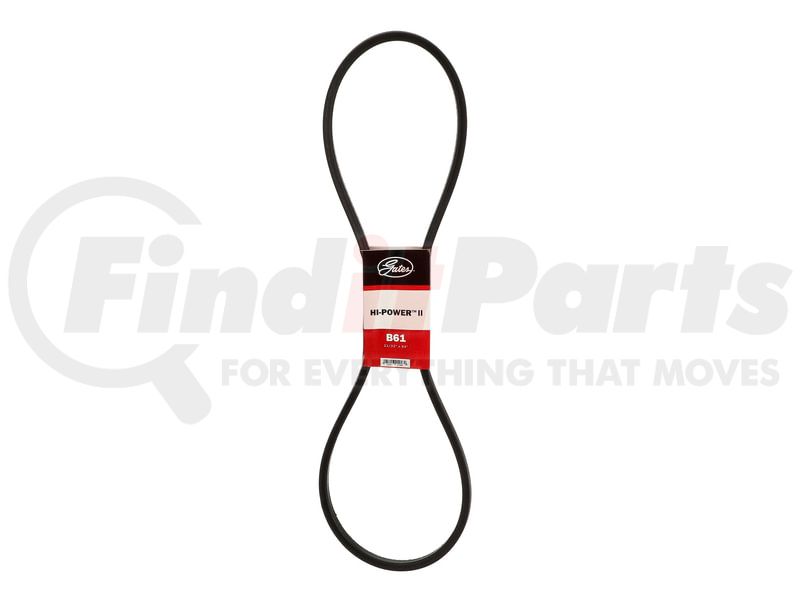

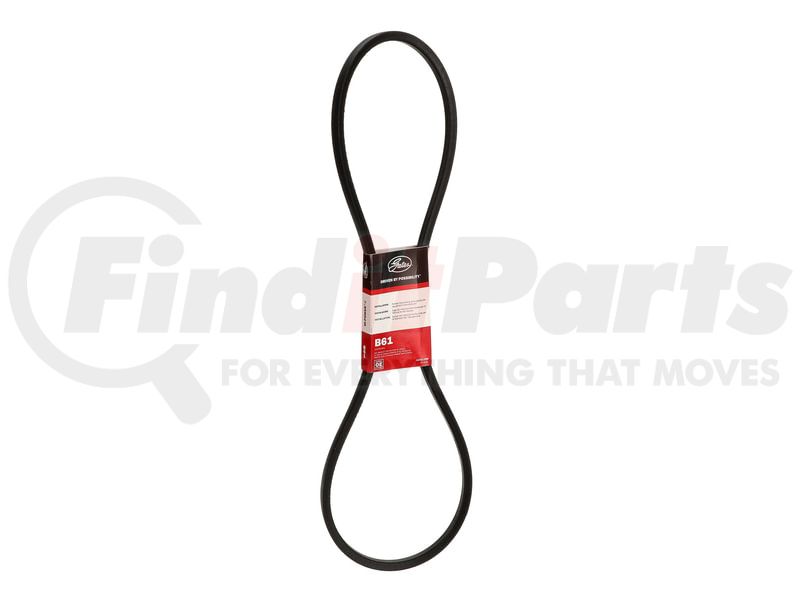

(888) 312-8812 Login SignupGATES B61 Hi-Power II Classical Section Wrapped V-Belt
Tap to view 6 more
$2199
Limited availability at this price!
In Stock
Get it by Monday, Jan 5
GATES B61 Part Description
Manufacturer
Product Description
Hi-Power II Classical Section Wrapped V-Belt
Features & Benefits
- Smoother running with less slip and wear for excellent belt service life and reduced pulley wear
- High-quality rubber compound protects the belt against heat, ozone and sunlight
- Proprietary Flex-Weave cover is a patented fabric construction, providing extended protection to the belt core from oil, contaminants and heat for longer belt life
- Flex-bonded cords strongly adhere to the body of the belt, resulting in equal load distribution and absorption of bending stress, fatigue and shock loads without cord deterioration
- Meets RMA oil and heat resistant standards and static conductivity requirements
- Temperature Range: -22 Deg. F to +140 Deg. F (-30 Deg. C to +60 Deg. C)
- NOTE: Available in A, B, C, D and E cross-sections as well as Hi-Power II PowerBand V-belts
GATES B61 Specifications
Product Attributes
| Type | Classical Section Wrapped V-Belt |
| Cross Section Designation | B |
| Strand Quantity | 1 |
| Top Width | .66 in |
| Outside Circumference | 64 in |
| Construction | Wrapped |
| Notched | No |
| Belt Material | EPDM |
| Cord Material | Polyester |
| Top Width | 17 mm |
| Outside Circumference | 1626 mm |
Additional Information
| Harmonized Tariff Code (Schedule B) | 4010323000 |
| Country of Origin (Primary) | MX |
| UPC | 00072053019469 |
| VMRS Code | 065005003 |
| UNSPSC | 26111801 |
GATES B61 Part Interchanges
| Brand | Part Number |
|---|---|
| White | AP2791A |
| ACDelco | IB61 |
| Dayco | 58417, BP61 |
| CARQUEST | B61 |
| Silver Streak | DBB61 |
| Allis Chalmers | 1119006, 523693, 70523693, 71119006 |
| BMB Manufacturing | S1000, S1000A |
| Browning Manufacturing | B61 |
| Bunton | PL8004 |
| Caterpillar | 287441, 2B7441 |
| CCIL Canada | 00019613, C105758719 |
| Demco | 1A104 |
| Deutz-allis | 72027155 |
| Fleetrite | ZAHBP61 |
| Frigidaire | 635615 |
| Ford | 171886, E3HT 8620 UA |
| Massey Ferguson | 1027577M91, 1037774M1, 501060M1, 833652M1, 833652M2 |
| Hesston | 7855489, 7855521, 855841 |
| MTD Products | MTD46P, MTD46PEM |
| New Holland | 242307 |
| Outboard Marine (OMC) | 828451, 828451A |
| Thermo-King | 2045B55G92, 2045B55H92, 780481, 78481 |
| Goodyear | 77061, B61 |
| NAPA Belts/Hose | B61 |
| Grainger | 1A104 |
| Mott | 000954 |
| NAPA | B61 |
| Nivel | 1334 |
| PIX | A-B61 |
| Reliance Electric | 107289 |
| Yazoo | 205061 |
| <Unknown> | 01001710, 05236930, 11190063, 117018, 5H59829A61, 5H59831A61, R828451 |
| Metric | 16C1625 |
GATES B61 Cross References
We have 1 alternatives for the B61 by GATES:
