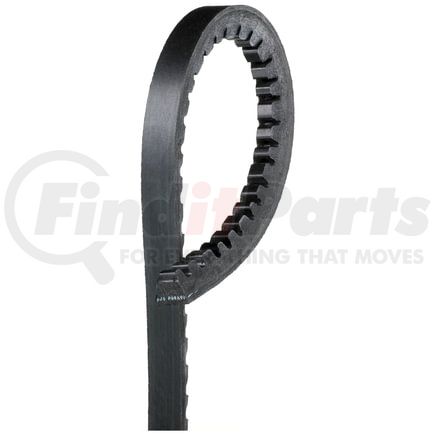

Gates 9770 - CL11-GATES BELT
$5999
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
GATES part description
Product Description
Automotive XL High Capacity V-Belt
Application Summary
1988-1985 GMC, Brigadier, Detroit Diesel 6-71 Diesel, A.C.
Features & Benefits
- Fiber-loaded rubber stock adds flexibility along the length of the belt and provides greater lateral stability in the pulley
- Form-ground to ensure precise top width and sidewall dimensional control for proper fit to the pulley
- Thermally-active tensile cords for maintenance-free performance when properly installed and tensioned
- Resists oil, heat, ozone, weather and aging for improved belt life
- Meets or exceeds SAE J636C specifications
Product Attributes
| Type | High Capacity V-Belt (Standard) |
| Cross Section Designation | HC50 |
| Angle | 36 |
| Strand Quantity | 1 |
| Top Width | .47 in |
| Outside Circumference | 77.58 in |
| Effective Length | 77 in |
| Construction | Notched |
| 9837 | Yes |
| Belt Material | EPDM |
| Cord Material | Polyester |
| Top Width | 12 mm |
| Outside Circumference | 1970.5 mm |
| Effective Length | 1956 mm |
Additional Information
| Harmonized Tariff Code (Schedule B) | 4010343000 |
| Country of Origin (Primary) | US |
| UPC | 00072053312812 |
| VMRS Code | 065005003 |
| UNSPSC | 26111801 |
Part Interchanges
- Bosch 1987947456
- Bosch 910416-2390
- ACDelco 17770
- Dayco 17768
- Dayco 17770
- CARQUEST 9770
- Bando 3760
- Bando 4770
- Caterpillar 8M3092
- Continental Belt 6587454
- Continental Belt V645
- Frigiking 0401773
- General Motors 11502423
- General Motors 3748816
- General Motors 9433947
- Mercedes-Benz 0039974892
- Mercedes-Benz 0039974992
- Mercedes-Benz 0039978692
- Mercedes-Benz 0049973192
- Mercedes-Benz 0079976492
- Mercedes-Benz 0079976592
- Kysor 300334
- Mitsuboshi MF2770
- Mitsuboshi MF6760
- Mitsuboshi RECMF2770
- Mitsuboshi RECMF6760
- Mitsuboshi REMF2770
- Mitsuboshi REMF6760
- Terex 9013900
- Flennor AVX13X0700LA
- Volvo GM Heavy Truck G11502423
- Volvo GM Heavy Truck G9433947
- NAPA Belts/Hose 25-9770
- MBL Three Stars 17770
- NAPA 25-19555
- <Unknown> 281983
- <Unknown> 394662
- <Unknown> 4766788100
- <Unknown> 5000037892
- Metric 12.5X1950LA
- Metric 13A1955
Fits Vehicles
- GMC Brigadier (1985-1988)
- White/GMC J9C0 (1988-1989)
- GMC General (1981-1984)
